Not sure which one fits your project? Use this 30-second guide:
| Your Project Need | Best Choice | Why |
| Indoor installation, close viewing (< 10 meters) | P5 LED Display | Smaller pixel pitch = sharper image up close |
| High brightness needed for text-heavy content | P5 LED Display | Higher brightness, sharper text edges |
| Outdoor billboard, long viewing distance (> 15 meters) | P10 LED Display | Pixels not visible from far away – great value |
| Stadium screen or rooftop advertising | P10 LED Display | Far viewing distance makes P10 perfect and cost-effective |
| Tight budget for outdoor installation | P10 LED Display | Much lower cost per square meter |
Table of Contents
What Are P5 and P10 LED Displays?
Before diving into differences, let us define each option clearly.

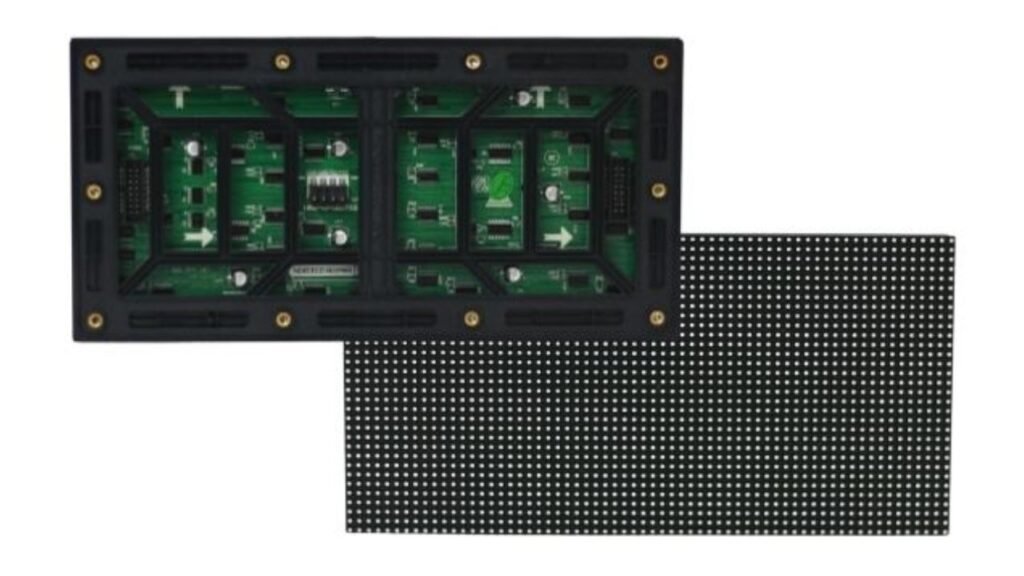

P5 LED Display
P5 refers to a pixel pitch of 5 millimeters – the distance between the center of one LED pixel to the next.
Best for:
- Indoor events and concerts
- Shopping malls and retail stores
- Conference rooms and auditoriums
- Tunnels and indoor advertising
- Any application where viewers stand 5-10 meters away
Key advantages:
- Higher resolution and sharper image
- Better for text-based content
- Brighter (5,000-10,000 nits)
P10 LED Display
P10 refers to a pixel pitch of 10 millimeters – twice the distance of P5.
Best for:
- Outdoor digital billboards
- Highway advertising signs
- Sports stadiums
- Large outdoor events
- Any application where viewers stand 10-20 meters away
Key advantages:
- Lower cost per square meter
- Lower power consumption
- Durable for outdoor conditions
Quick Comparison Table
| Major Factors | P5 LED Display | P10 LED Display |
| Pixel Pitch | 5mm | 10mm |
| Best Placement | Indoor | Outdoor |
| Viewing Distance | 5-10 meters | 10-20 meters |
| Brightness | 5,000-10,000 nits | ~2,500 nits |
| Power Consumption | 450-750 watts/sqm | Lower |
| Viewing Angle | 160° horizontal & vertical | 120° horizontal & vertical |
| Typical Applications | Indoor events, malls, tunnels | Billboards, stadiums, highways |
| Cost per sqm | Higher (500−500−1,200) | Lower (200−200−500) |

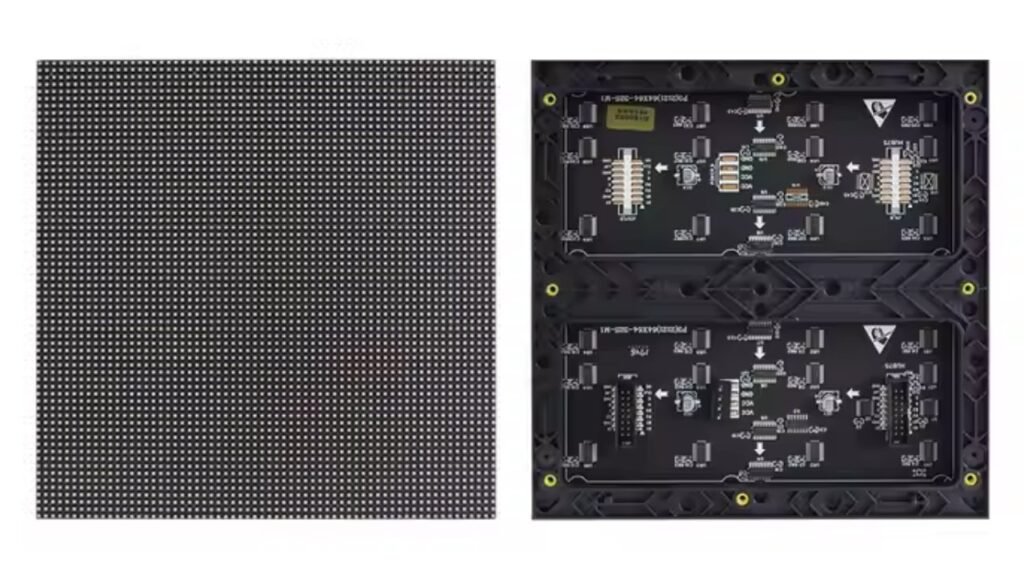

Detailed Comparison by Factor
1. Pixel Pitch (The Main Difference)
Pixel pitch is the gap between individual LED pixels on the screen.
| Factor | P5 | P10 |
| Gap between pixels | 5mm | 10mm |
| Pixel density | Higher (more LEDs per sqm) | Lower (fewer LEDs per sqm) |
| Image sharpness up close | Excellent | Visible pixels up close |
Bottom line: P5 shows more detail and looks sharper when viewed from close range.
2. Placement (Indoor vs Outdoor)
| Factor | P5 | P10 |
| Best for | Indoor environments | Outdoor environments |
| Weather resistance | Limited | Built for sunlight, rain, dust |
| Typical use | Halls, malls, events | Billboards, stadiums, highways |
Bottom line: P5 for indoor, P10 for outdoor – but P5 can work outdoors with proper weatherproofing at higher cost.
3. Viewing Distance (The Most Important Factor)
This is the #1 factor in your decision.
| Factor | P5 | P10 |
| Minimum viewing distance | 5 meters | 10 meters |
| Ideal viewing range | 5-10 meters | 10-20 meters |
| What happens closer than ideal | Sharp, clear image | Visible pixels, “blocky” appearance |
Simple rule: Take your viewing distance in meters. That is the pixel pitch you need (e.g., 5 meters = P5).
4. Brightness
| Factor | P5 | P10 |
| Typical brightness | 5,000-10,000 nits | ~2,500 nits |
| Sunlight readability | Good (with outdoor rating) | Adequate |
| Best for | Bright indoor spaces, semi-outdoor | Standard outdoor use |
5. Power Consumption
| Factor | P5 | P10 |
| Power usage | Higher (450-750 watts/sqm) | Lower |
| Why? | More LEDs to power | Fewer LEDs per square meter |
| Electricity cost impact | Higher | Lower (especially for 24/7 operation) |
Bottom line: For 24/7 outdoor billboards, P10’s lower power consumption saves significant money over time.
6. Viewing Angle
| Factor | P5 | P10 |
| Horizontal angle | 160° | 120° |
| Vertical angle | 160° | 120° |
Bottom line: P5 offers wider viewing angles – important for indoor audiences spread across a room.
7. Typical Applications
| Application | P5 | P10 |
| Indoor events and concerts | ✅ Best | ❌ Not recommended |
| Shopping malls | ✅ Great | ❌ Too pixelated |
| Retail storefronts | ✅ Excellent | ❌ Not suitable |
| Conference rooms | ✅ Perfect | ❌ No |
| Outdoor billboards | 🟡 Possible (costly) | ✅ Best |
| Highway signs | ❌ Not cost-effective | ✅ Perfect |
| Sports stadiums | ❌ Too expensive | ✅ Great |
| Large outdoor events | 🟡 Possible | ✅ Best |
8. Cost Per Square Meter
| Factor | P5 | P10 |
| Price range (USD/sqm) | 500–500–1,200 | 200–200–500 |
| For a 10 sqm screen | 5,000–5000–12,000 | 2,000–2000–5,000 |
| Why the difference? | More LEDs, more components | Fewer LEDs, simpler design |
Project Needs Checklist
Still unsure? Fill this out to clarify your requirements:
□ Viewer distance: ______ meters (closest seat) □ Installation location: □ Indoor / □ Outdoor □ Primary content: □ Video/images / □ Text-heavy □ Sunlight exposure: □ Direct sun / □ Shaded / □ Indoor □ Project budget: $______ per square meter □ Running hours: ______ hours/day
Once you answer these, your choice becomes clear:
| If your answers look like this… | Choose |
| Distance < 10m, indoor, text-heavy, higher budget | P5 |
| Distance > 10m, outdoor, video/images, lower budget | P10 |
Which One Should You Choose?
Choose P5 LED Display if:
- Viewing distance is 5-10 meters
- Installation is indoor (mall, lobby, conference room, event)
- You need high brightness and sharp text
- Your budget allows for higher upfront cost
- Image quality is your top priority
Choose P10 LED Display if:
- Viewing distance is 10-20 meters or more
- Installation is outdoor (billboard, stadium, highway)
- You want lower power consumption for 24/7 operation
- Your budget is tight (P10 is much more affordable)
- Viewers will be far enough that individual pixels are not visible
The Simple Answer
| Your viewing distance | Your choice |
| Under 10 meters | P5 |
| Over 10 meters | P10 |
The formula: Minimum viewing distance (in meters) = pixel pitch (in mm). For a P5 screen, the minimum distance for a seamless image is 5 meters. For P10, it is 10 meters.
Our LED Displays for Your Project
At IvanLED, we manufacture both P5 and P10 LED displays:
- P5 displays – Indoor events, retail, lobbies, conferences
- P10 displays – Outdoor billboards, stadiums, highway signs
- Custom sizes available
- 1-year warranty
- Shipping worldwide
Tell us your viewing distance and installation location. We will recommend the right pixel pitch and provide a free quote.
FAQ
Q: What is the main difference between P5 and P10?
The main difference is pixel pitch. P5 has a 5mm gap between pixels; P10 has a 10mm gap. This affects viewing distance (P5 = 5-10 meters, P10 = 10-20 meters), image sharpness at close range (P5 is sharper), and cost (P10 is cheaper).
Q: Can I use a P10 screen indoors?
Technically yes, but not recommended. At typical indoor viewing distances (2-5 meters), you will see individual pixels, making the image look “blocky” or pixelated. For indoor use, choose P5 or even smaller pitch (P2.5, P3).
Q: Which one is more energy efficient?
P10 is much more energy efficient. It uses about 250 watts per square meter during normal operation, while P5 uses 450-750 watts. For 24/7 outdoor billboards, the savings with P10 can be substantial.
Q: Can P5 be used outdoors?
Yes, but you need an outdoor-rated (IP65) version, which costs more. P10 is the standard choice for outdoor due to better cost-effectiveness and adequate brightness for long-distance viewing.
Q: Which is better for text-based advertising?
P5. Because viewers are often closer, and text requires higher resolution to be sharp and readable. P10 at close range will show jagged edges on letters.
Q: How do I calculate the right pixel pitch for my project?
A simple formula: minimum viewing distance (in meters) = pixel pitch (in mm). For example, if the closest viewer will be 6 meters away, a P6 or P5 screen would work. If they are 12 meters away, P10 is fine. Provide your viewing distance to us and we will recommend the optimal pixel pitch.
