LED Screen For Stage
A successful event cannot be achieved without an LED display. The huge event scene makes it easy and clear for everyone to watch the live performance, allowing the performers to immerse themselves in a more severe display.
LED Screen for Stage: Create Unforgettable Events
Picture This
The lights dim. The crowd cheers. Then — your LED screen lights up.
A massive, seamless wall of color and motion. The artist’s face fills the screen. Lyrics pulse in time with the beat. The audience is captivated.
That is the power of an LED screen on stage.
Whether you are planning a concert, a corporate event, a theater production, or a festival, the right LED screen transforms a good show into an unforgettable experience.
Why LED Screens Have Replaced Projectors on Stage
| Feature | LED Screen | Projector | LCD TV |
| Brightness | 1,000-6,000+ nits | 2,000-5,000 lumens | 300-700 nits |
| Stage lighting compatibility | Excellent | Washes out | Poor |
| Seamless splicing | Yes (any size, no bezels) | N/A | No (bezels visible) |
| Curved setups | Yes | Limited | No |
| Setup time | 1-4 hours | 30 min | 10 min |
| Rental availability | Yes | Yes | Limited |
| Visible from side angles | Good | Poor | Poor |
The bottom line: For any stage where lighting, video, and impact matter, LED screens are the professional standard.
5 Stage Scenarios That Demand LED
1. Concerts & Music Festivals
The need: Large audiences, far viewing distances, bright stage lighting, video playback, live feeds.
Why LED: Only LED screens are bright enough to compete with stage lighting. The audience needs to see the artist’s face from 50 meters away.
Recommendation: P3.9 – P6.6, 4,000+ nits, curved or flat.
2. Corporate Events & Keynotes
The need: Crisp text, brand colors, speaker close-ups, professional look.
Why LED: Projectors wash out under stage lights. Text becomes unreadable. LED keeps everything sharp.
Recommendation: P2.5 – P3.9, 1,500+ nits.
3. Theater & Live Performances
The need: High resolution for close seating, dynamic backdrops, seamless integration with sets.
Why LED: Theater audiences sit close (5-15 meters). Low-resolution screens look pixelated. LED provides the detail needed for immersive experiences.
Recommendation: P2.5 – P3.9, 1,000-1,500 nits.
4. Weddings & Private Events
The need: Romantic backdrops, photo slideshows, dance floor visuals, easy setup.
Why LED: Creates a wow factor that guests remember. Photos and videos look stunning on a bright, seamless screen.
Recommendation: P2.5 – P3.9, rental options.
5. TV & Broadcast Studios
The need: High refresh rate (no flicker on camera), accurate colors, seamless splicing.
Why LED: Cameras capture everything. Low refresh rates create visible flicker. LED with 3,840 Hz+ is broadcast-ready.
Recommendation: P2.5 – P3.9, 3,840 Hz refresh rate.
Where Does The LED Screen Used For Stage
Find the right place in your stage to install the LED screen
Concert and Music Festivals
Modern concerts and festivals now rely on stage LED screens as essential storytelling platforms. Take Taylor Swift’s ‘Eras Tour’ or Beyoncé’s ‘Renaissance World Tour’ — their massive LED installations don’t just display visuals, but create living environments where imagery dances in perfect harmony with every musical note.

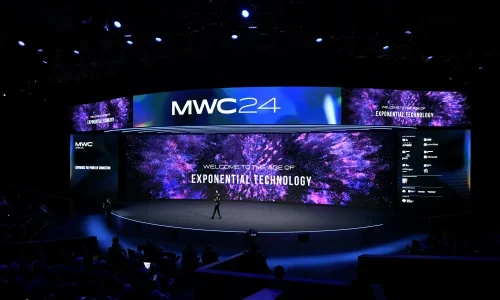

Corporate Events(Product Launches)
Corporate events increasingly utilize LED walls as visual centerpieces for product launches, trade shows, and conferences. During product unveilings, large-format high-resolution LED displays enable companies to showcase product features through ultra-HD videos, immersive 3D animations, and multi-angle live feeds. This ensures even complex technical specifications – such as display parameters or performance benchmarks – are communicated with absolute clarity to the audience.

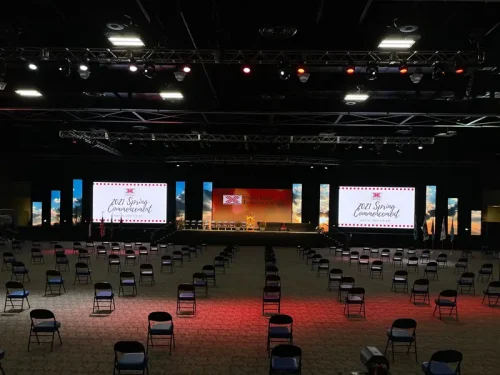

Academic Events
Graduation ceremonies and academic events often use LED screens to enhance the student and family experience. Large LED walls on or behind the stage can display each graduate’s name, photo, or background video, ensuring that the honorees are clearly visible even to guests from a distance. Crucially, LEDs stay bright in daylight, so they can be used for outdoor ceremonies even in full sunlight.

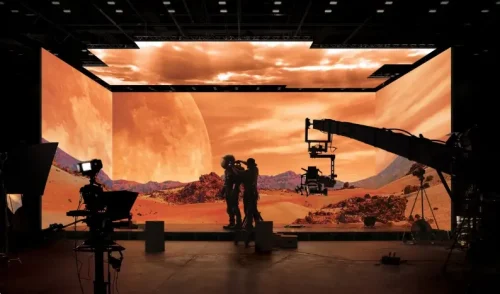

Virtual Productions
In television studios and virtual productions, LED video walls have transformed set design. News programs, talk shows and radio studios are now using large LED backdrops and even LED floors to create realistic or dreamy on-air environments. These walls can instantly switch scenes (showing city skylines, weather maps, or custom graphics) without moving any of the physical set.
How to Choose the Right Stage LED Screen
Step 1: Determine Your Needs
| Question | Why it matters |
| How big is the venue? | Determines screen size |
| How far is the farthest seat? | Determines pixel pitch |
| What type of event? | Determines brightness and resolution |
| Indoor or outdoor? | Determines IP rating and brightness |
| Will cameras be filming? | Determines refresh rate |
| How long is setup time? | Determines whether you need fast-install panels |
Step 2: Choose Pixel Pitch
Pixel pitch = distance between LEDs. For stage screens, viewers are often close (5-20 meters).
| Pixel Pitch | Best Viewing Distance | Best for |
| P2.5 | 2.5 – 8 meters | Theater, corporate, close seating |
| P3.9 | 4 – 15 meters | Medium venues, standard stages |
| P4.8 | 5 – 20 meters | Large stages, festivals |
| P6.6 | 7 – 30 meters | Very large stages, far seating |
Recommendation: P3.9 is the most popular choice for stage applications. It balances cost and quality for most venues.
Step 3: Choose Brightness
| Venue Type | Recommended Brightness | Why |
| Indoor theater / corporate | 1,000-1,500 nits | Stage lighting is controlled |
| Indoor concert / festival | 2,500-4,000 nits | Compete with strong stage lights |
| Outdoor day event | 4,000-6,000+ nits | Sunlight is unforgiving |
| Outdoor night event | 2,500-4,000 nits | Still need to compete with lights |
Step 4: Choose Refresh Rate
Refresh rate is critical for stage screens — especially if cameras are present.
| Refresh Rate | Best for | Notes |
| 1,920 Hz | Basic events, no cameras | May flicker on video |
| 2,880 Hz | Most concerts, live audiences | Good balance |
| 3,840 Hz | Broadcast, TV, streaming | Camera-friendly, no flicker |
Recommendation: 2,880 Hz for most stage events. 3,840 Hz if you will be filming.
Technical Requirements You Cannot Ignore
Rigging & Weight
| Screen Size | Approx Weight | Rigging Requirement |
| 3m x 2m (6 sqm) | 150-200 kg | Basic truss |
| 5m x 3m (15 sqm) | 375-500 kg | Professional truss, certified rigger |
| 8m x 4m (32 sqm) | 800-1,100 kg | Heavy-duty truss, engineer sign-off |
Warning: Never guess on rigging. Hire a certified rigger for any screen over 10 sqm.
Power Requirements
| Screen Size | Typical Power | What you need |
| 3m x 2m | 1,500-2,500W | Standard 15A circuit |
| 5m x 3m | 4,000-6,000W | Dedicated 30A circuit |
| 8m x 4m | 10,000-15,000W | 3-phase power, professional electrician |
Control & Processing
Processor: Novastar or Linzen (industry standard)
Signal distribution: Fiber optic for long distances (over 20m)
Backup: Always have a backup processor and cables
Software: Novastar LCT for configuration
Setup Timeline for Stage LED Screens
| Screen Size | Setup Team | Time |
| Small (3m x 2m) | 2 people | 1-2 hours |
| Medium (5m x 3m) | 3-4 people | 2-3 hours |
| Large (8m x 4m+) | 5-8 people | 4-6 hours |
Pro tips:
Add 50% more time for curved setups
Add 1-2 hours for outdoor setups (weatherproofing)
Always do a full test before the audience arrives
Cost Breakdown for
| Screen Size | Pixel Pitch | Estimated Cost |
| 3m x 2m (6 sqm) | P3.9 | $3,600 – $5,400 |
| 5m x 3m (15 sqm) | P3.9 | $9,000 – $13,500 |
| 8m x 4m (32 sqm) | P3.9 | $19,200 – $28,800 |
Note: Purchase costs include panels, processor, and cables. Does not include rigging, transport, or storage.
5 Mistakes to Avoid with Stage LED Screens
| Mistake | Consequence | How to avoid |
| Wrong pixel pitch | Pixelated image up close | Calculate viewing distance first |
| Insufficient brightness | Washed out under stage lights | Choose 2,500+ nits for concerts |
| Low refresh rate | Flicker on camera | Choose 2,880 Hz+ for any filmed event |
| Poor rigging | Safety hazard, equipment damage | Hire certified riggers |
| No backup | Show stops if processor fails | Bring spare processor and cables |
LED Screens For Stage FAQ
Still have some questions?
1. How do you choose the size of the stage LED display?
The choice of stage LED display needs to be comprehensively considered based on budget, frequency of use, flexibility and other factors. Leasing is suitable for short-term use, such as short-term music festivals, etc.; fixed installation is suitable for long-term use, such as performance halls, etc.
2. Is it better to rent or install a stage LED display?
The choice of stage LED display needs to be comprehensively considered based on budget, frequency of use, flexibility and other factors. Leasing is suitable for short-term use, such as short-term music festivals, etc.; fixed installation is suitable for long-term use, such as performance halls, etc.
3. Does pixel spacing have a big impact on stage LED displays?
The pixel pitch has a great influence on the stage LED display. Generally, the stage LED display will choose a small pitch pixel pitch, such as P3.91, P2.5, etc. The specific parameters need to be selected according to the audience distance and display requirements.
4. Regarding the stage LED display, which one is better, asynchronous control or synchronous control?
If you need to adjust the playback content at any time, it is recommended to choose synchronous; if not, it is recommended to choose asynchronous.
For Stages: LED That Wows
Front/Rear Maintenance
P2.5/P2.604/P2.976/P3.91/P4.46/P4.81/P5.21/P6.25
Magnesium/Aluminum (alloy)
Indoor/Outdoor
Front/Rear Maintenance
P2.5/P2.604/P2.976/P3.91/P4.46/P4.81/P5.21/P6.25
Magnesium/Aluminum (alloy)
Indoor/Outdoor
Front/Rear Maintenance
P4.81/P3.91/P2.976/P2.604
Die-cast aluminium
Indoor/0utdoor
Front/Rear Maintenance
P4.81/P3.91/P2.976/P2.604
Die-cast aluminum
Indoor/Outdoor
Front/Rear Maintenance
P4.81/P3.91/P2.976/P2.604
Die-Casting aluminum
Indoor/0utdoor
Front/Rear Maintenance
P4.81/P3.91/P2.976/P2.604
Hoisting and fixed installation
Indoor/0utdoor
Conclusion
An LED screen for stage is the single most impactful visual element you can add to any live event. Unlike projectors that wash out under stage lights or LCDs with visible seams, LED screens deliver:
- ✅ Unmatched brightness – visible even under intense stage lighting
- ✅ Seamless splicing – any size, any shape, no bezels
- ✅ High refresh rates – smooth video, camera-friendly
- ✅ Rental options – pay per event, no long-term commitment
- ✅ Professional impact – creates unforgettable moments
Whether you are producing a concert, a corporate keynote, a wedding, or a festival, an LED screen elevates your production value instantly.
At IvanLED, we have supplied LED screens for stages across Mexico and more than 50 countries. We can help you choose the right size, pixel pitch, and brightness for your next event.
Get a Quote for Your Stage LED Screen
Ready to elevate your next event?
At IvanLED, we provide high-quality LED screens for stages of all sizes – rental or purchase.
What we offer:
Any size from 3m x 2m to 20m x 10m
Pixel pitches from P2.5 to P6.6
Rental options for single events
Purchase options for production companies
Technical support and setup guidance
Tell us your event type, venue size, and whether you need rental or purchase. We will reply within 24 hours with a free quote.
