AP SERIES LED DISPLAY
Find out how the AP SERIES LED DISPLAY combines high-resolution visuals with durable construction, perfect for diverse advertising and display needs.

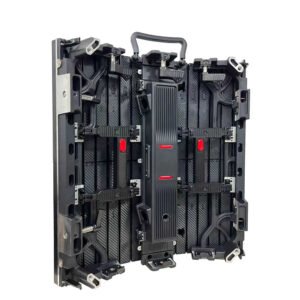

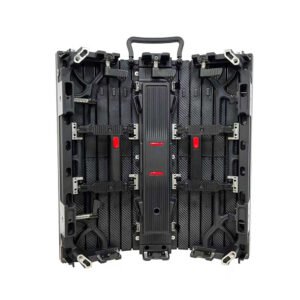

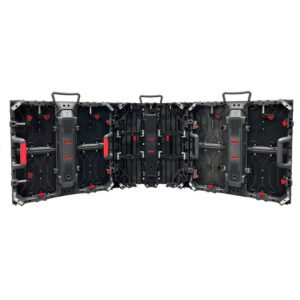

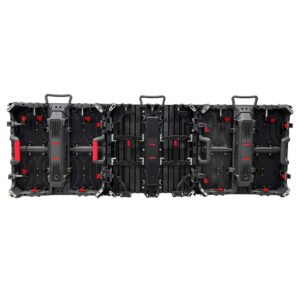

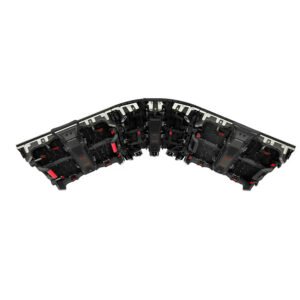

500X500-AP Inside and outdoor Cabinet
250mmx250mm/125mmx500mm
P2.604/P2.976/P3.91
500mmx500mmx74mm
4.2KG
Black
Hoisting and fixed installation
Four modules per Cabinet
Indoor-lp30/0utdoor-lp65
4Pcs:locating pins, 1Pcs:handle.
1PcS:door plank, 2Pcs:power strip.
5PcS:quicklocks, 1Pcs:Flat Plate connector.
Parameter
| Item | Parameter | ||
| Model No. | P2.6 | P2.9 | P3.91 |
| Pixel configuration | 1R1G1B | ||
| LED type | SMD1515 | SMD2020 | SMD2020 |
| Density（dots/m2） | 147,456 | 112,896 | 65,536 |
| Module size（mm） | 250×250 | ||
| Module resolution | 96×96 | 84×84 | 64×64 |
| Cabinet size（mm） | 500×500 | 500×500 | 500×500 |
| Cabinet resolution | 192×192 | 168×168 | 128×128 |
| Scan method | 1/32 | 1/28 | 1/16 |
| Brightness（nits） | ≥800 | ≥900 | ≥900 |
| Refresh rate（Hz） | ≥3840 | ≥3840 | ≥3840 |
| Weight | 8 kg/panel | ||
| Cabinet material | Die-cast aluminum | ||
| Protection level | IP43 | ||
| Maintenance | Rear | ||
