AF Series - Expo Rental LED Display with Curve Splicing & Quick Maintenance
- Expo-Ready (Designed for trade shows & exhibitions)
- Quick Power Swap (Plug-in power box for 500x500 panels)
- Curve Splicing (±12.5° adjustable arc)

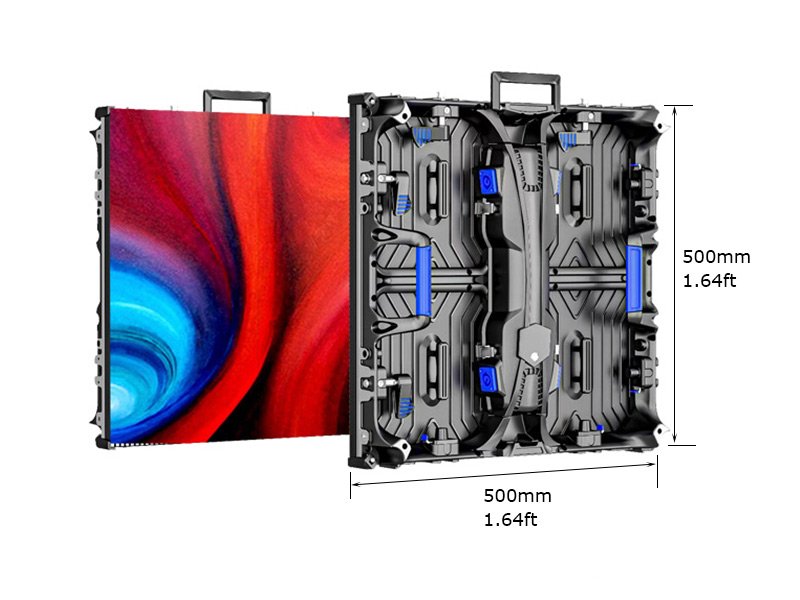

This stage rental led video wall are for indoor expo or outdoor expo. Available sizes of led cabinet are 500*500mm and 500*1000mm. If needed, the cabinet can be equipped with curve lock for curve install.
Specially, the led panel of 500*500mm supports plug-in power box for fast replacement. It is helpful in maintenance.
Different Colors for options
Concave or Convex install
+12.5° +10° 7.5° +5° +2.5° 0° -2.5° -5° +7.5°

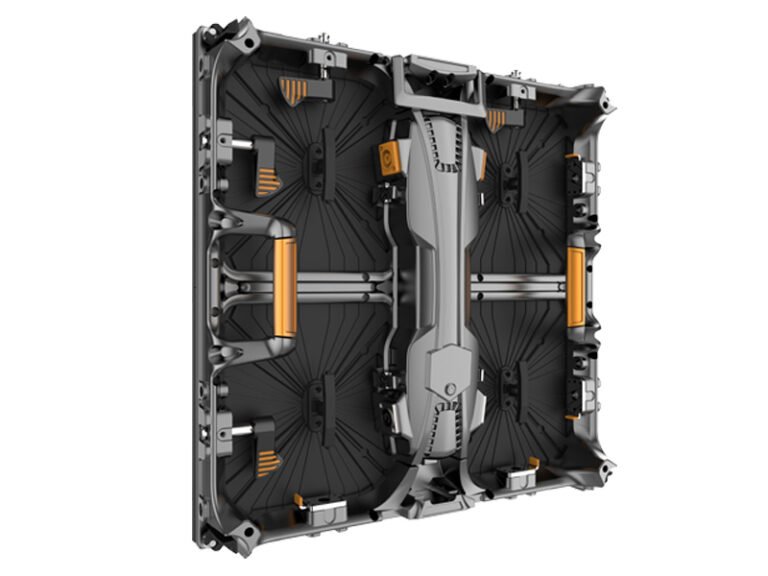

Plug-in Power Box & Front Accessed Modules
Only available for 500*500mm panel
Compact 2-in-1 Rigging bars for Expo install
References for 16:9 Ratio Layout

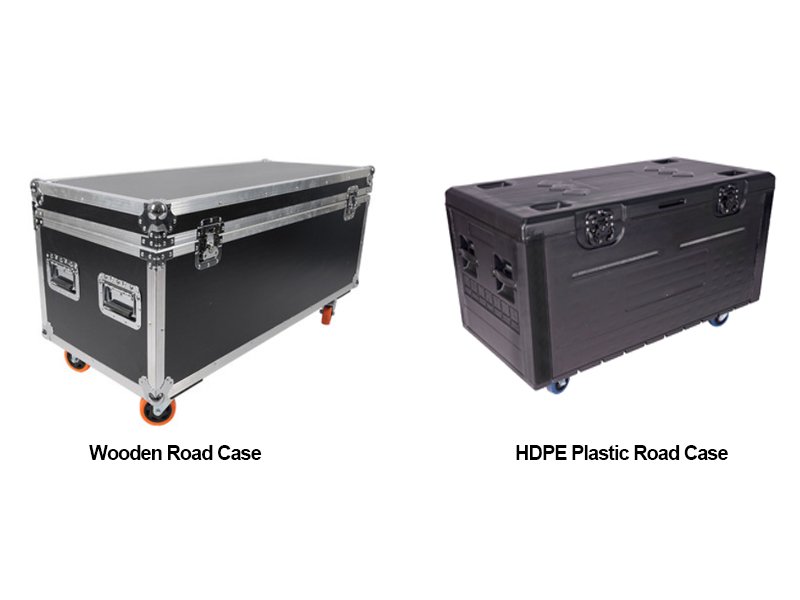

Different Road Cases for Options
Models for Indoor Expo stand
| Model | 2.6 Indoor | 2.97 Indoor | 3.91 Indoor |
| Pixel Pitch | 2.6mm | 2.97mm | 3.91mm |
| Color | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 250mm*250mm | 250mm*250mm | 250mm*250mm |
| Cabinet Size | 500mm*500mm | 500mm*500mm | 500mm*500mm |
| Brightness | 800nits | 800nits | 800nits |
| Refresh Rate | 3840Hz/7680Hz | 3840Hz/7680Hz | 3840Hz/7680Hz |
| Voltage | AC110V-220V | AC110V-220V | AC110V-220V |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7KG | 7KG | 7KG |
Models for Outdoor Expo Stand
| Model | 3.91 Outdoor | 4.81 Outdoor |
| Pixel Pitch | 3.91mm | 4.81mm |
| Color | 1R1G1B | 1R1G1B |
| Module Size | 250mm*250mm | 250mm*250mm |
| Cabinet Size B | 500mm*500mm | 500mm*500mm |
| Brightness | 5,000nits | 5,000nits |
| Refresh Rate | 3840Hz/7680Hz | 3840Hz/7680Hz |
| Voltage | AC110V-220V | AC110V-220V |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5KG | 7.5KG |
