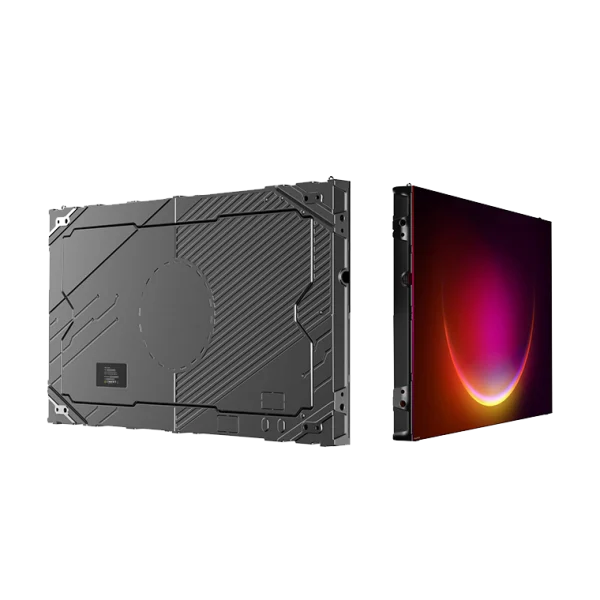

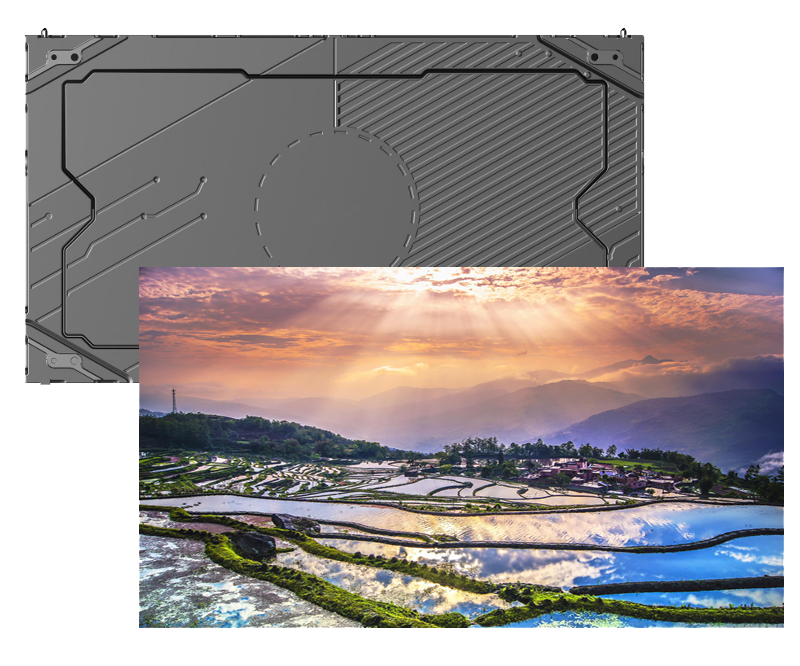

BYH V1 Series
Professional COB Display
In the field of commercial display, Mini LED direct display wilI grow rapidly both domestically and overseas in the next 3 years.
COB market share will gradually increase, and it is predicted to reach 25% in 2026.
Product Composed
Perfect Image

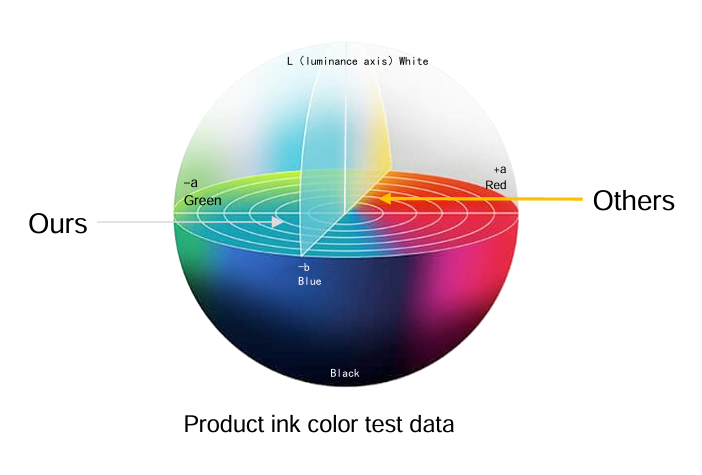

Ink color uniformity
AL<0.23(small ink color differences)
Easy maintenance
Dirt-resistant and easy to wipe
Visually superior
Black Blue (Difficult to see the difference)
Obvious contrast between bright and dark
Restoring the realscene
High ACR (Ambient Contrast Ratio)
7200:1/ 7700:1/8200:1(10lux)
High color gamut
110% NTSC

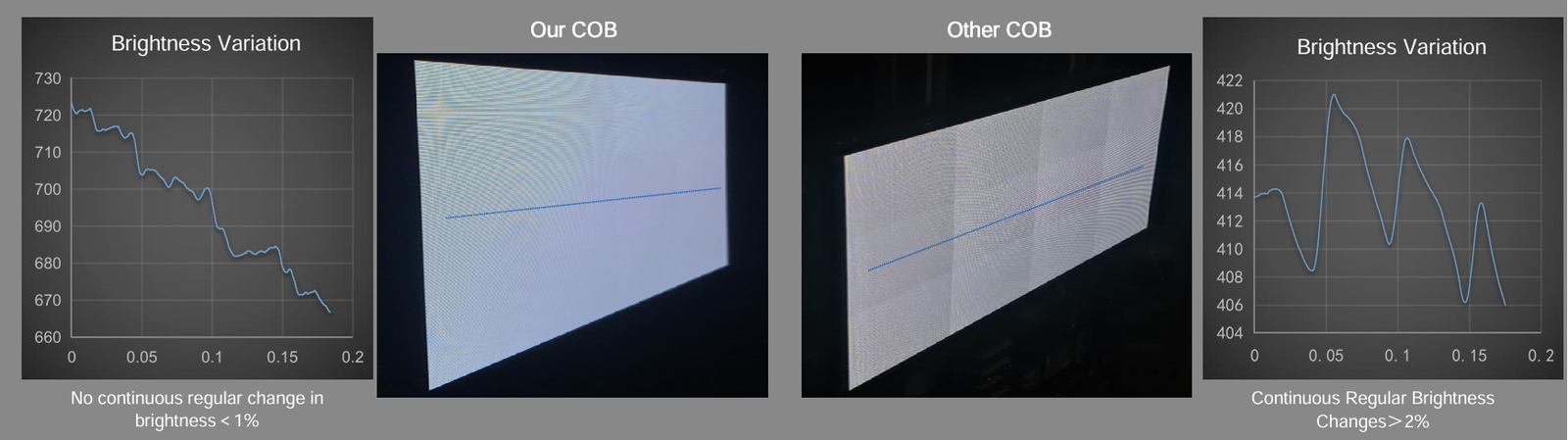

Good uniformity of large viewing angle
Module-to-module brightness variation <1%
No Module Display Issues

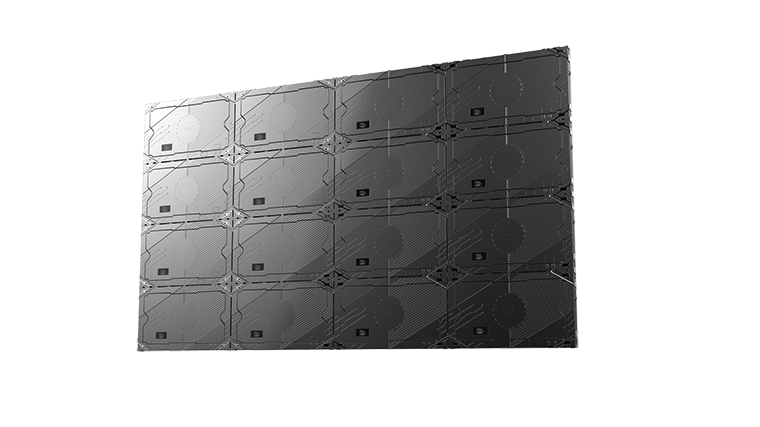

High Flatness
- Large-screen splicing seam & segment difference ≤ 50 um
- High consistency of dark state visual effect
- No splicing bump feeling
None Reflective
- Non-reflective and anti-glare
- Eneapsulation film microstructure design, the surface presents a matte state.

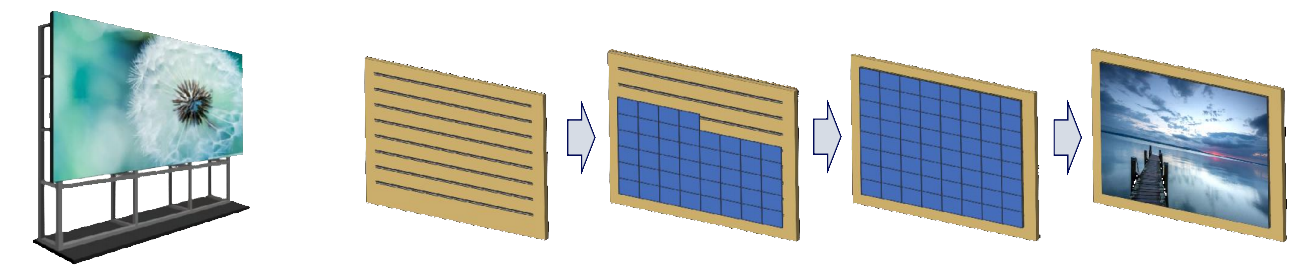

More convenient, fast, and secure installation
Thickness (MDL to Wall)
<60mm
Quick installation
↑40% efficiency
Lower cost
↓150+$/sqm
| Technical Parameters | Remark | ||||
| MDL | Pitch (mm) | 0.9375 | 1.25 | 1.5625 | |
| MDL resolution (dot) | 160*180 | 120*135 | 96*108 | ||
| MDL size (mm*mm) | 150*168.75 | ||||
| Ingress Protection | IP65 for MDL surface side | ||||
| Cabinet | Cabinet resolution (dot) | 640*360 | 480*270 | 384*216 | |
| Cabinet dimension (mm*mm*mm) | 600*337.5*32.7 | ||||
| Complete set weight (kg) | 3.7kg | ||||
| Maintenance mode | Front | ||||
| Cabinet flatness (mm) | ≤ 0.1 | ||||
| Electrical | Ave. power consumption (W/sqm) | 117 | 95 | 100 | @600nit |
| Max. power consumption (W/sqm) | 350 | 285 | 300 | @600nit | |
| Input voltage (V) | AC 100-240 | ||||
| Optical | White balance brightness (cd/m2) | Typ 600, 0~800 Adjustable | |||
| Ambient contrast ratio | 7200:1 | 7700:1 | 8200:1 | @10Lux | |
| Horizontal/Vertical viewing angle (°) | 160/160 | 160/160 | 155/155 | ||
| Systematic | Refresh rate (Hz) | ≥ 3840 | |||
| Installation | Installation mode | Stacking & Wall mounting | |||
