UC-2A SERIES
Applications: led cube display, 90 degree creative angle led display, shopping mall led video wall,hotel led display, church led video wall, airport led screens, meeting room led TV etc

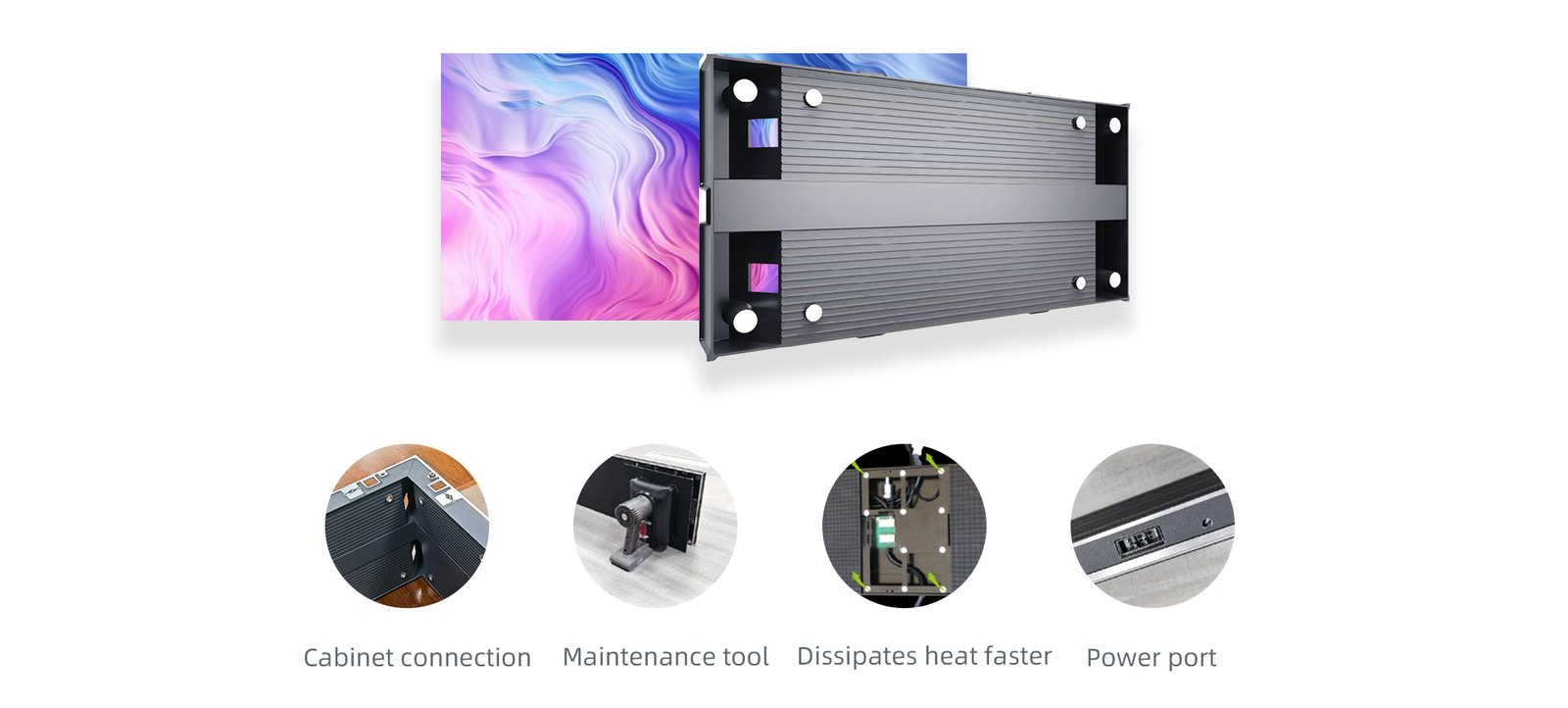

- 1. Super Light and thin cabinet, 45.5mm thickness
- 2. Aluminum Die-casting
- 3. High precision, seamless for large screenFull front maintenance
- 4. 45 degree Bevel cabinets to make 90 degree splicing Support wall mounted or hanging installation
Indoor Fixed LED Display Solutions

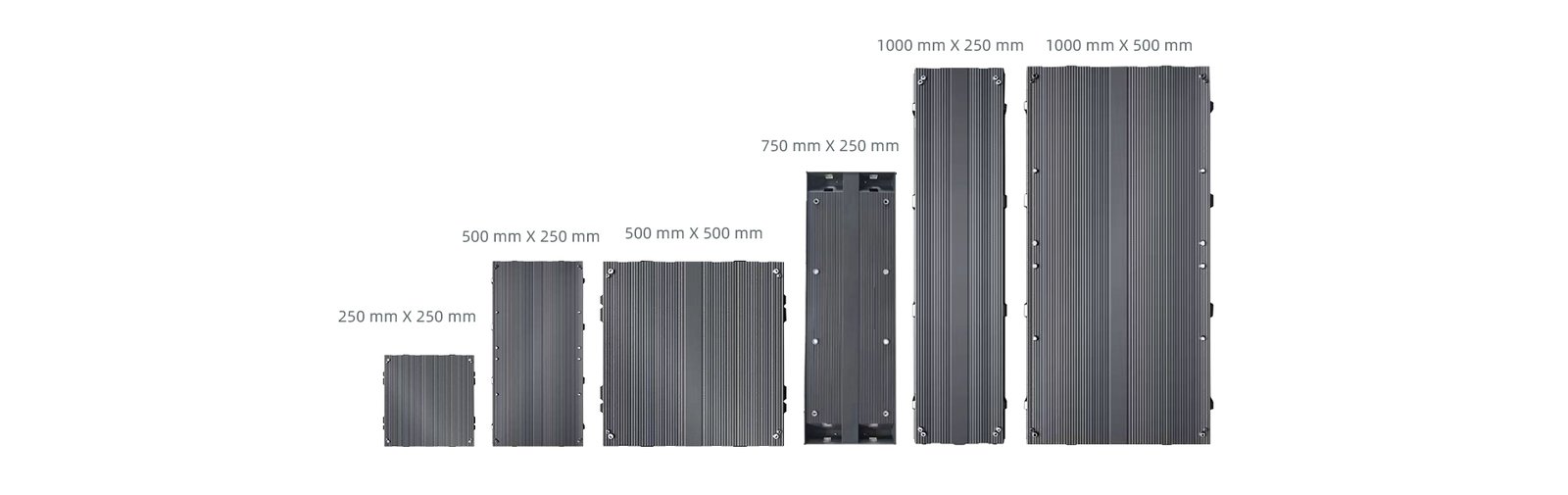

Alternative Cabinet Size Options

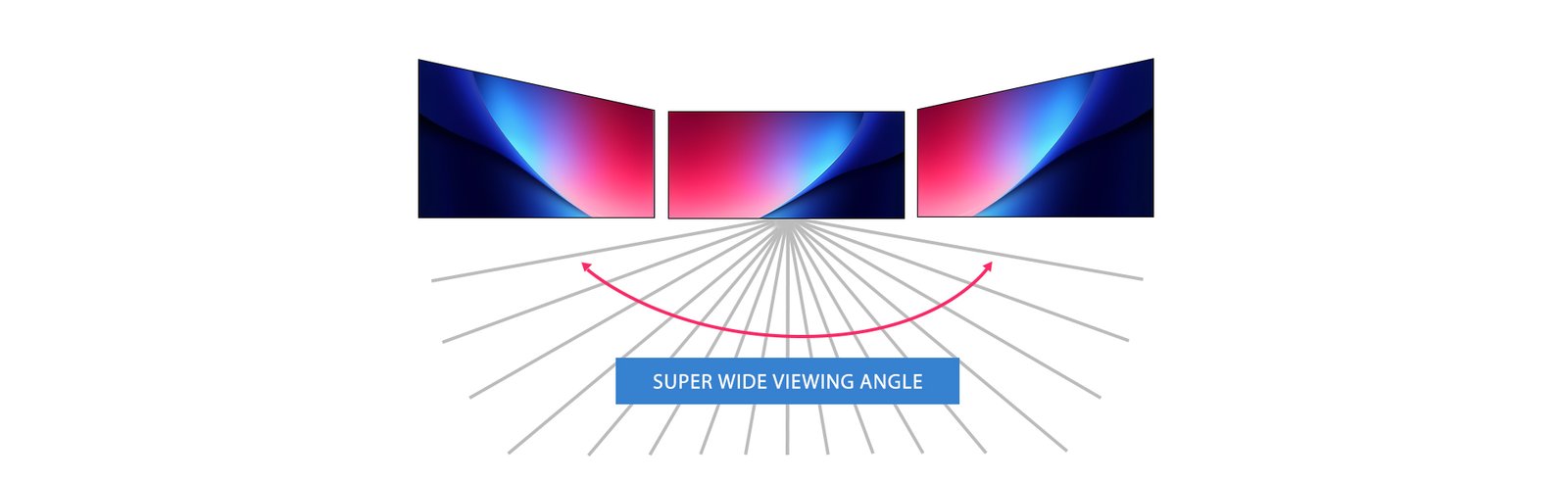

Ultra-wide Viewing Angle As If You Were OnThe Scene
For The Best Image Quality

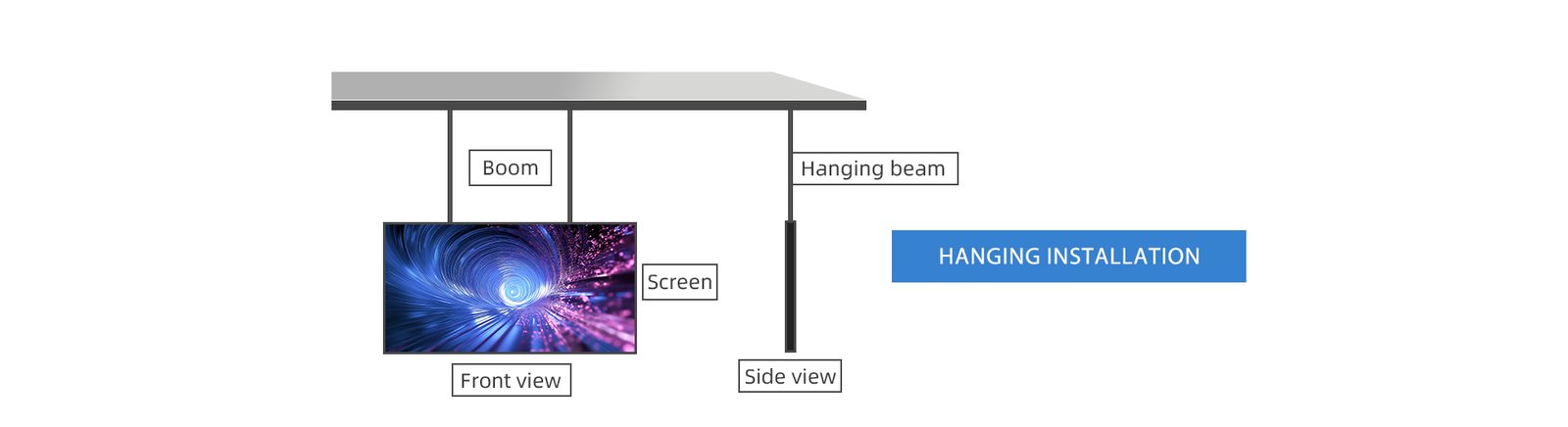

Multi-installation Ways

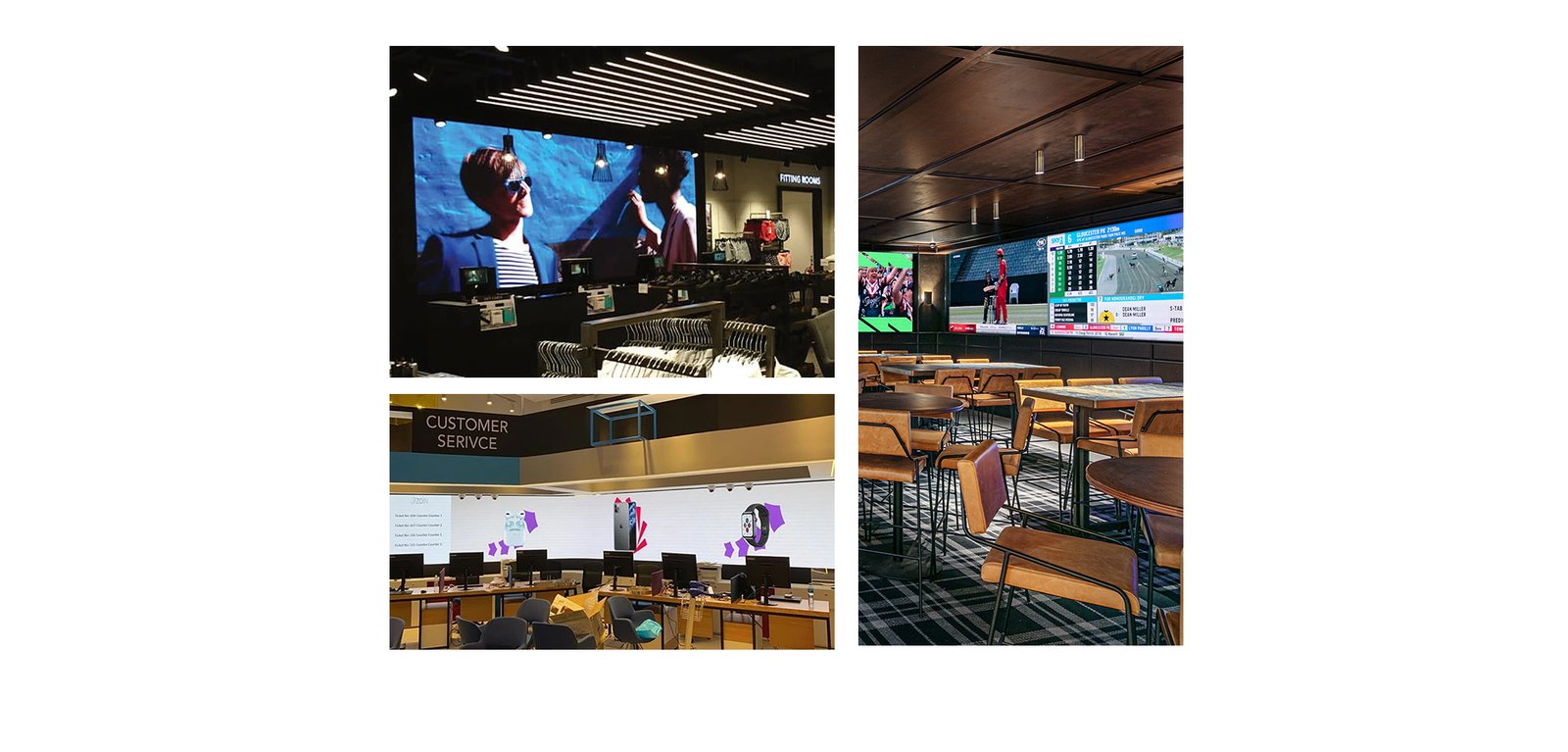

Appreciation of classic cases
| Model | UC2A-P1.56 | UC2A-P1.95 | UC2A-P2.6 | UC2A-P2.9 | UC2A-P3.9 |
| Pixel Pitch(mm) | 1.5625 | 1.953 | 2.604 | 2.976 | 3.91 |
| Pixel Density(dots/㎡) | 409600 | 262144 | 147456 | 112896 | 65536 |
| LED Type | NationStar SMD1212 | NationStar SMD1515 | NationStar SMD1515 | NationStar SMD2020 | NationStar SMD2020 |
| Module Size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Standard Cabinet Size(mm) | 1000*500 | ||||
| Cabinet Resolution(pixels) | 320*640 | 256*512 | 192*384 | 168*336 | 128*256 |
| Cabinet Weight(KG/Panel) | 9 | ||||
| Optional Cabinet Size(mm) | 1000*250 750*250 500*500 500*250 250*250 | ||||
| Cabinet Materal | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Brightness(Nits) | ＞900 | ＞1000 | |||
| Refresh Rate(Hz) | 7680 | ||||
| Grey Scale(Bit) | ≥16 | ||||
| Max Power Consumption(W/㎡) | 550 | 520 | 500 | 480 | 450 |
| Average Power Consumption(W/㎡) | 200 | 156 | 150 | 144 | 135 |
| Maintenance | Front Service / Front Open | ||||
| Protection Level | IP45 | ||||
| Viewing Angle(H/V) | 140°/140° | ||||
| Operating Temperature | -30℃-65℃ | ||||
| LED Lifetime | ＞100,000 Hours | ||||
