TR SERIES LED DISPLAY

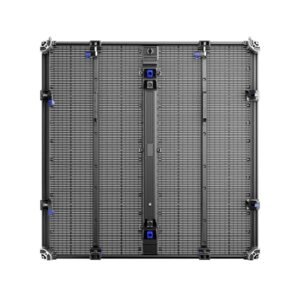

1000X1000-TR 0utdoor Cabinet
250mmx500mm
P3.91/P7.8/P10.416
1000mmx1000mmx68.9mm
6.9KG
Black
Hoisting and fixed installation
Eight modules per Cabinet
Indoor-lp30/0utdoor-lp65
2Pcs:locating pins.
1PCS:door plank, 4Pcs: quick locks.
1PCS:Flat Plate connector
Effortless Installation & Superior Pixel Density
Lightweight, Robust Design: Our die-cast aluminum cabinet weighs under 16 kg/sqm, significantly reducing logistical stress and enabling faster, simpler installation.
Maximized Efficiency: The innovative 1m x 1m cabinet size reduces the number of panels needed by up to 50% compared to standard 0.5m x 1m designs, dramatically cutting installation time.
Precision Pixel Pitches: Experience crystal-clear imagery with a range of high-density options, including P2.9, P3.9, and P3.9-7.8.
High Transparency Display
Transparency Rate: 30% – 45% or higher. It creates stunning visual depth and vibrant images, perfect for immersive night-time displays enhanced by dynamic lighting, with the ability to produce striking 3D holographic effects.
Advanced Safety Engineering:
Our innovative wind-pass design substantially minimizes wind load on supporting structures, thereby enhancing on-site safety and mitigating the risk of accidents. This ensures comprehensive protection for installations, equipment, and personnel.
High Brightness
With a brightness of 4500–6500 nits, the screen delivers outstanding visibility even in direct sunlight. It ensures vibrant, clear, and glare-free visuals for audiences in any lighting condition.
Excellent Heat Dissipation
Die-casting aluminum cabinet is more durable and highly stable and the heat dissipation of aluminum is much better than others in the market. The cabinet is used with wind-pass design. As a result, even without fans and air conditioners, the screen can still work properly in the high temperature of below 60 degree.
Flexible Installation & Creative Design Options
The panel offers a variety of cabinet sizes, including 500mm x 1000mm and 1000mm x 1000mm, which allows for flexible and efficient installation to meet diverse spatial needs.

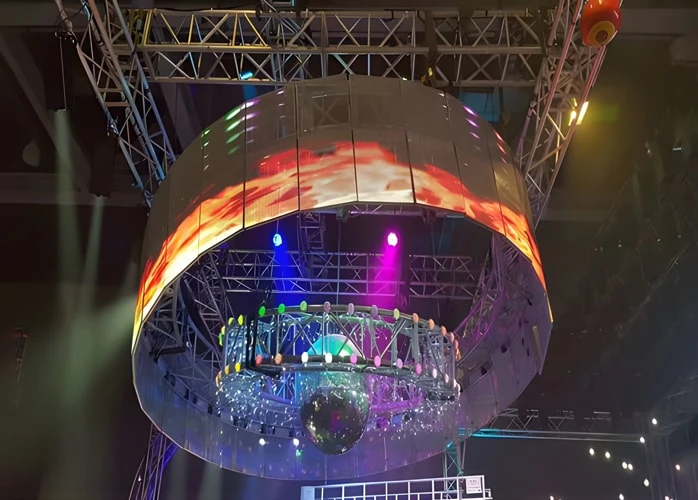

Additionally, it boasts an innovative locking mechanism that facilitates seamless concave or convex curved designs, opening up exciting creative possibilities for dynamic and engaging applications.
Multiple Options of installation
Ground Stacking: Effortlessly assemble and dismantle displays for events with our simple ground-stacking solution. Perfect for temporary setups where speed and ease are essential.Truss Lifting: Utilize our lightweight cabinets with integrated hanging bars for secure overhead installation. The reduced weight minimizes stress on trusses and supporting structures, ensuring a safer and more efficient setup.
Application Fields
To fit every different scene , our product is made up of superior quality materials with the concise and strong structure. This product is usually used in:
Cinemas; Stages; Advertisements.
Parameter
| Item | P2.9 | P3.9 | P3.9-7.8 | P7.8 |
| Pixel Pitch | 2.9mm | 3.9mm | 3.9-7.8mm | 7.8mm |
| LED Type | SMD 1415 | SMD 1921 | SMD 1921 | SMD 1921 |
| Module Resolution | 168dots × 84dots | 128dots × 64dots | 128dots × 32dots | 64dots × 32dots |
| Driving Mode | 1/7scan | 1/8scan | 1/8scan | 1/8scan |
| Module Pixels | 14,112dots | 8,192dots | 4,096dots | 2,048dots |
| Module Size | 500mm × 250mm | 500mm × 250mm | 500mm × 250mm | 500mm × 250mm |
| Cabinet Size | 1000mmx1000mm or 500mmx 1000mm | 1000mmx1000mm or 500mmx 1000mm | 1000mmx1000mm or 500mmx 1000mm | 1000mmx1000mm or 500mmx 1000mm |
| Cabinet Resolution | 336dotsx336dots/168dotsx336dots | 256dotsx256dots/128dotsx256dots | 256dotsx128dots/128dotsx128dots | 128dotsx128dots/64dotsx128dots |
| Pixel Density | 112,896dots/㎡ | 65,536dots/㎡ | 32,768dots/㎡ | 16,384dots/㎡ |
| Minimum Viewing Distance | ≥2.9m | ≥3.9m | ≥3.9m | ≥7.8m |
| Transparency | 30% | 35% | 45% | 45% |
| Brightness | 4500nits | 4500nits-6500nits | 4500nits-6500nits | 4000nits-6000nits |
| IP Grade | IP66 | IP66 | IP66 | IP66 |
| Refresh Rate | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz |
| Gray Scale | 14bits-22bits | 14bits-22bits | 14bits-22bits | 14bits-22bits |
| Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° | H:120° / V:160° |
| Maximum Power Consumption | 700W/㎡ | 700W/㎡ | 700W/㎡ | 700W/㎡ |
| Average Power Consumption | 210W/㎡ | 210W/㎡ | 210W/㎡ | 210W/㎡ |
| Input Voltage | AC110V-AC220V @ 50Hz / 60Hz | AC110V-AC220V @ 50Hz / 60Hz | AC110V-AC220V @ 50Hz / 60Hz | AC110V-AC220V @ 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 16kg/㎡ | 16kg/㎡ | 15.5kg/㎡ | 15.5kg/㎡ |
| Operating System | Windows | Windows | Windows | Windows |
| Signal Source Compatibility | DVI, HDMI, DP, etc. | DVI, HDMI, DP, etc. | DVI, HDMI, DP, etc. | DVI, HDMI, DP, etc. |
