TE Stadium SERIES
Elevate your sports environment with the TE Stadium Series’ high refresh rate, vibrant colors, and robust anti-collision features for reliable performance.
- 1. High refresh rate and high contrast
- 2. High gray level and high brightness
- 3. Anti collision;waterproof and dustproof
- 4. Splicing fence screens and square screens together

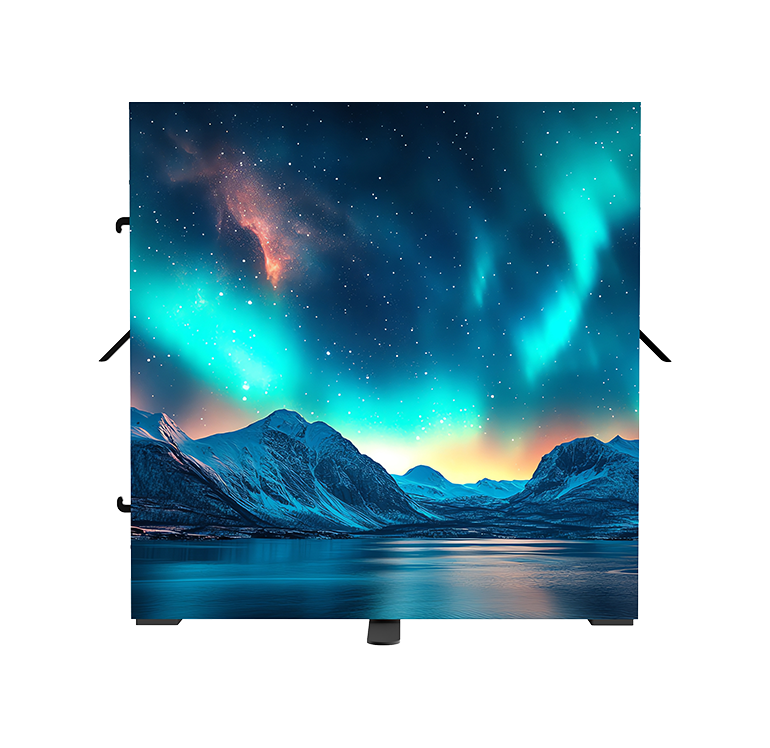

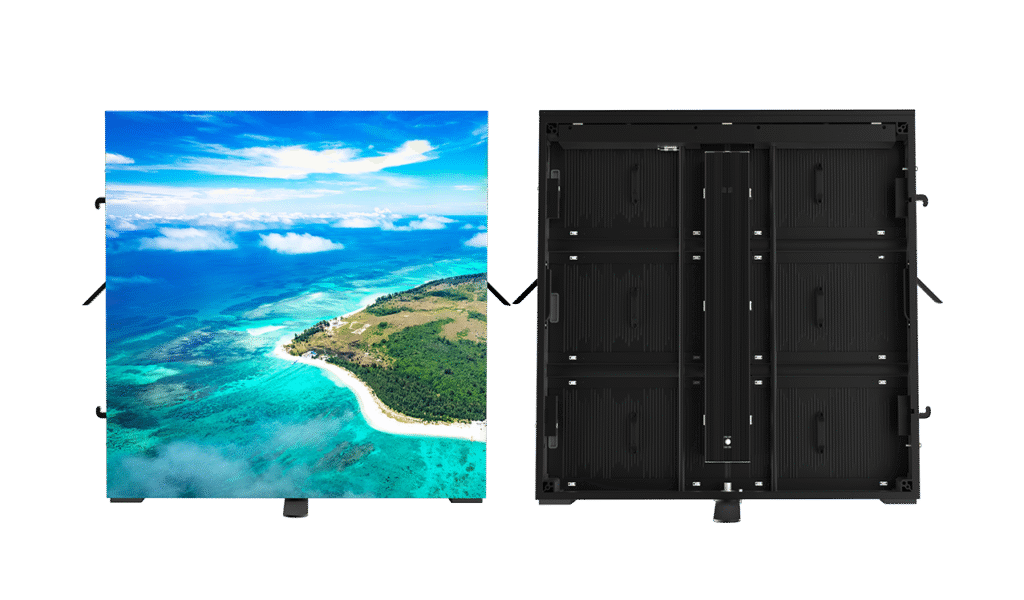

Cabinet appearance
Exquisite appearance, standardized casing, excellent processing technology
Greatly improves installation speed and display stability, making maintenance more convenient and safe
Ultra-high-definition visual enjoyment
High resolution, stable image display
Every detail is clearly visible, with no trailing or flickering on the screen display


High refresh rate
Using PWM high refresh rate chips with a refresh rate of over 3840Hz,
Satisfy the high-speed dynamic image playback requirements in sports scenes, with clear and residual images
Wide color gamut and high refresh rate
Restore the real and vivid world

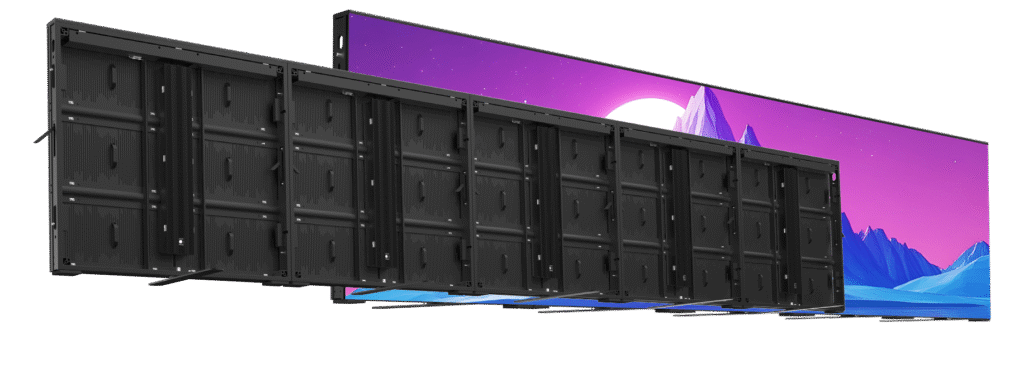

Style Display
Perimeter led screen can be customized with any splicing elongated cabinets

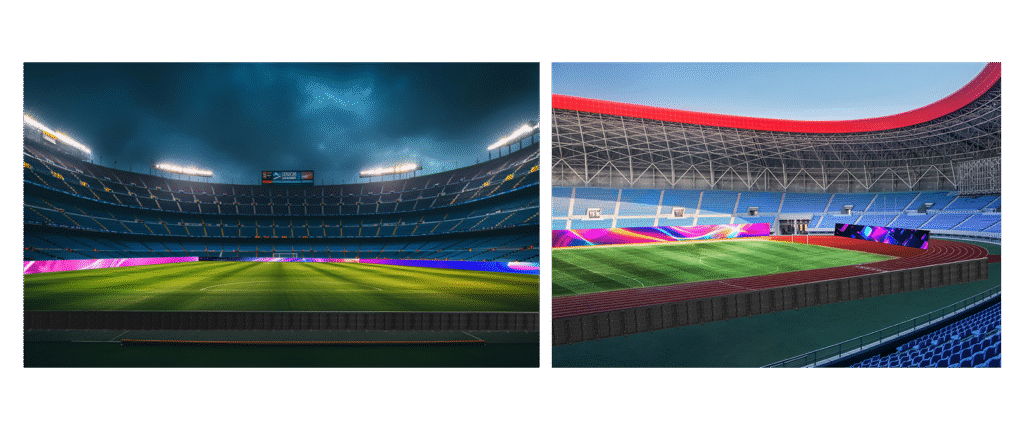

Application scenarios
ootball fields, basketball courts, badminton courts, rugby fields, tennis courts, ice rinks, table tennis courts, curling rinks, baseball、softball fields, etc.

Specification
| DESCRIPTION | TE SERIES | ||||
| PIXEL PITCH | TE4 | TE5.7 | TE6.67 | TE8 | TE10 |
| LED LAMP | SMD1415 | SMD1921 | SMD2727 | SMD2727 | SMD3535 |
| DENSITY(DOTS/M²) | 62500 | 40000 | 22477 | 15625 | 10000 |
| BRIGHTNESS | ≤5500 NITS | ≤5500 NITS | ≤5500 NITS | ≤5500 NITS | ≤6000 NITS |
| IP RATING | IP65 | IP65 | IP65 | IP65 | IP65 |
| CABINET MATERIAL | SECTION HOUSING | ||||
| SCAN | 10 SCAN | 8 SCAN | 6 SCAN | 5 SCAN | 2 SCAN |
| MODULE WEIGHT | 2.5KG | 2.5KG | 2.5KG | 2.5KG | 2.5KG |
| CABINET WEIGHT | 24 KG | 24 KG | 24 KG | 24 KG | 24 KG |
| MODULE SIZE (MM) | 480*320 | 480*320 | 480*320 | 480*320 | 480*320 |
| CABINET SIZE (MM) | |||||
| MODULE PIXEL (DOTS) | 120*80 | 96*64 | 72*48 | 60*40 | 96*96 |
| CABINET PIXEL (DOTS) | 240*240 | 192*192 | 144*144 | 120*120 | 240*240 |
| MAX POWER | 650 W/SQM | 650 W/SQM | 650 W/SQM | 650 W/SQM | 650 W/SQM |
| AVERAGE POWER | 280 W/SQM | 280 W/SQM | 280 W/SQM | 280 W/SQM | 280 W/SQM |
| VIEWING ANGLE | H140 (+70/-70) DEG V140 (+70/-70) DEG | ||||
| CONTROL WAY | SYNCHRONOUS/ASYNCHRONOUS | ||||
| GRAY SCALE | 16 BIT | ||||
| OPERATING SYSTEM | AV, S-VIDEO, VGA, DVI, YPBPR, HDMI, SDI | ||||
| WORK HUMIDITY | 10%~90% | ||||
| WORK TEMPERATURE | -20 ~+ 65°C | ||||
