MW SERIES

Uncover the capabilities of MW SERIES: high refresh rates, anti-collision features, and flexible shapes to elevate your visual presentations.

1. Lightweight and portable: Made of die cast aluminum and other materials, it is lightweight and thin in thickness
2. Easy installation: Quick locking mechanism is used between the boxes
3. Excellent display effect: optional pixel spacing, capable of achieving high resolution and precise color reproduction
4. Stable technical performance: equipped with professional video processors
5. Highly customizable: Sizes and shapes can be customized according to the venue and creative needs

High refresh rate

The refresh rate can reach up to 7680Hz, meeting the needs of sports scenes

High speed dynamic image playback requirements, clear and free of residual images

High resolution, stable image display

Every detail is clearly visible, with no trailing or flickering on the screen display

Exquisite appearance, standardized casing, excellent processing technology

Greatly improves installation speed and display stability, making maintenance more convenient and safe

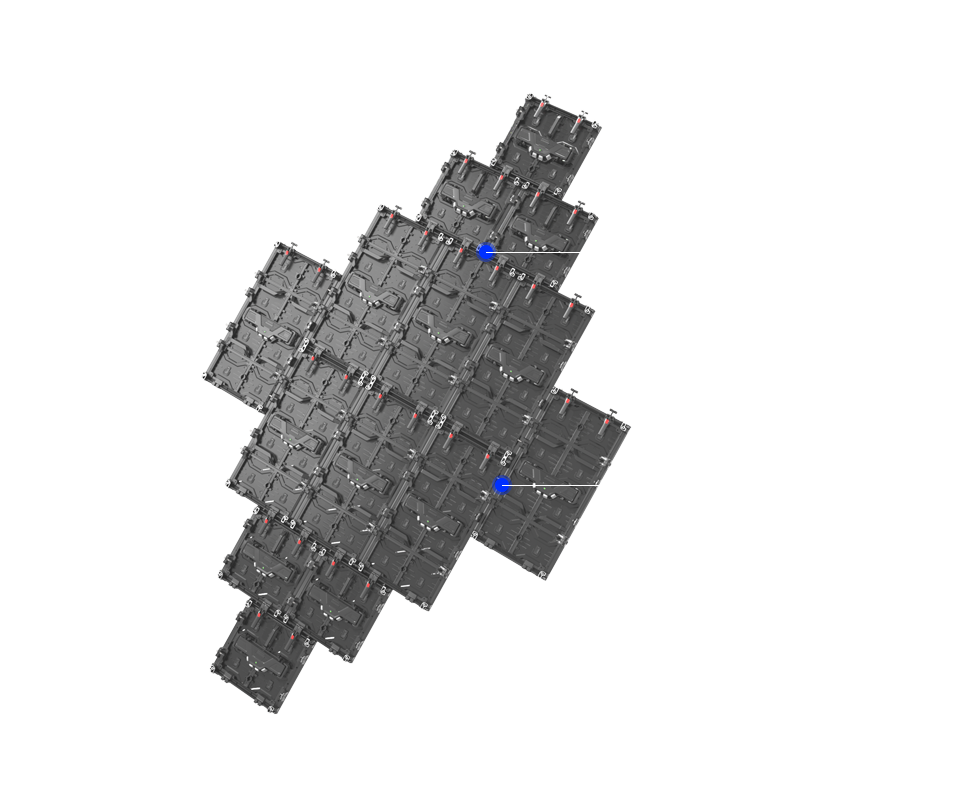

500 * 500 and 500 * 1000 boxes can be spliced together

It can also be staggered and pieced together to showcase various creative idea

Shell: usually made of high-strength aluminum alloy or copper alloy material

Contact: composed of pins and sockets

Insulator: using high-performance insulation materials

Support customization of curved box bodies, with curved splicing at multiple angles

Including (-10 °, -7.5 °, -5 °, -2.5 °, 0 °, 2.5 °, 5 °, 7.5 °, 10 °)

Box with corner protection design, matched with anti knock at the bottom of the box

Effectively protecting the module, greatly improving the anti-collision performance of the box

Hard connection plug and unplug design for power box

Dual maintenance, easy operation, quick installation and maintenance

Truly achieving worry free, labor-saving, and time-saving

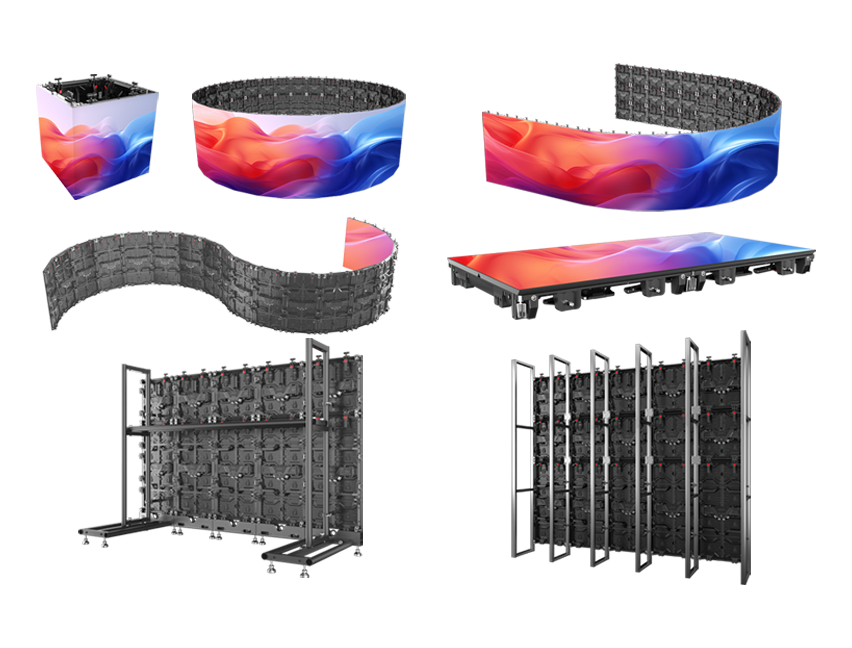

Customizable and customizable splicing box body

The inner arc, outer arc, or curved screen can be freely spliced together

Specification

Pixel pitch	1.953mm	2.5mm	2.604mm	2.976mm	3.91mm	4.81mm
Cabinet resolution	256×256 (HxV)	200×200 (HxV)	192×192 (HxV)	168×168 (HxV)	128×128 (HxV)	104×104 (HxV)
Module resolution	128*128dots	100*100dots	96*96dots	84*84dots	64*64dots	52*52dots
LED lifetime	100,000h
Brightness	Indoor 800nits, Outdoor 4500nits;
Module size	250*250mm
Refresh rate	3840-7,680Hz
View angle	140° Horizontal / 140° Vertial
Grey Level	16 bits
Avg Power consumption	200 W/m²	200 W/m²	200 W/m²	180 W/m²	180 W/m²	180 W/m²
Max Power consumption	700 W/m²	700 W/m²	700 W/m²	650 W/m²	650 W/m²	650 W/m²
Operation power voltage	100-240V / 50-60Hz
Operational temperature	-10°C to +40°C / 14°F to 104°F
Operational humidity	10-80%
IP rating	IP54 for Indoor, IP65 for Outdoor
Dimensions	500 x 500 x 80 mm /500 x 1000 x 80 mm(WxHxD)
Weight	6kg(500 x 500mm cabinet)/ 11kg (500 x 1000mm cabinet)
Maintenance	Front and back service
