CM Stadium SERIES

Enhance your sports facility with the CM Stadium SERIES: reliable protection, ultra HD visuals, and easy maintenance. Ideal for various athletic venues.

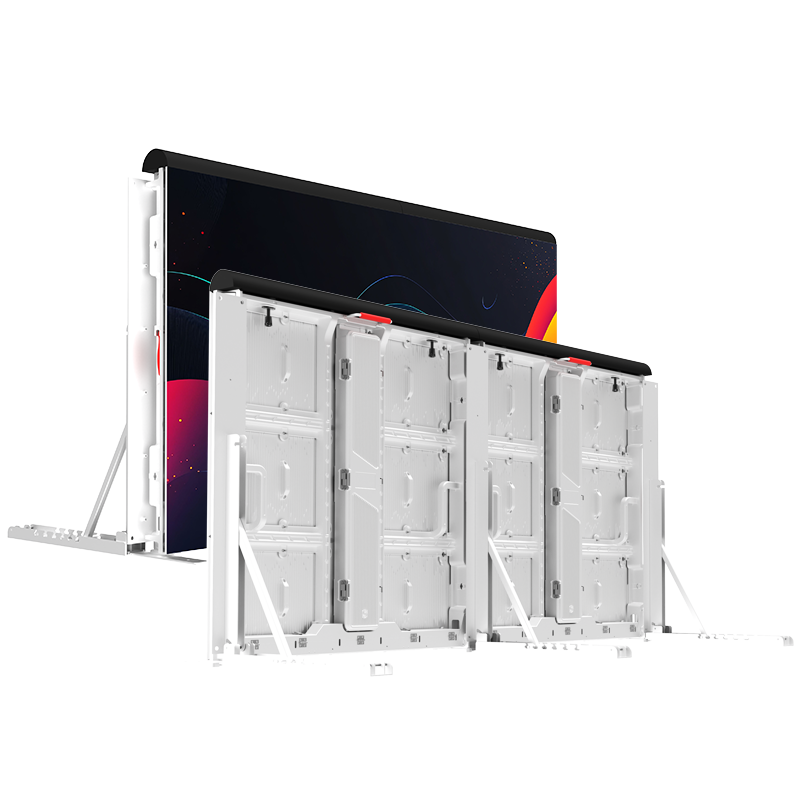

Cabinet appearance

Exquisite appearance, standardized casing, excellent processing technology

Greatly improves installation speed and display stability, making maintenance more convenient and safe

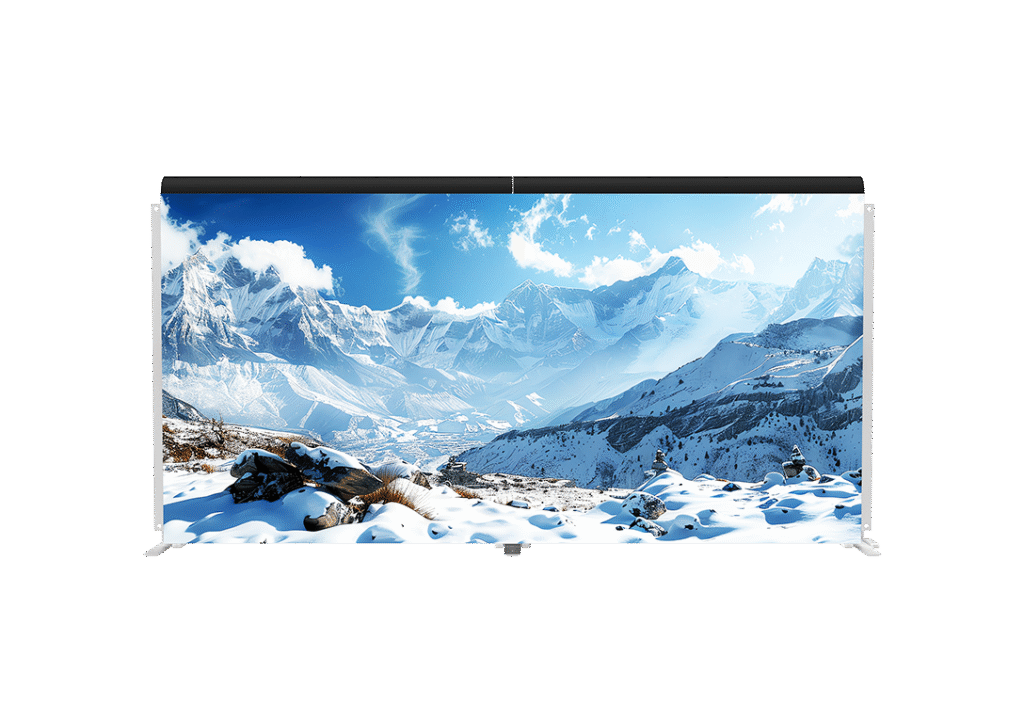

Ultra-high-definition visual enjoyment

High resolution, stable image display

Every detail is clearly visible, with no trailing or flickering on the screen display

High refresh rate

Using PWM high refresh rate chips with a refresh rate of over 3840Hz,

Satisfy the high-speed dynamic image playback requirements in sports scenes, with clear and residual images

Wide color gamut and high refresh rate

Restore the real and vivid world

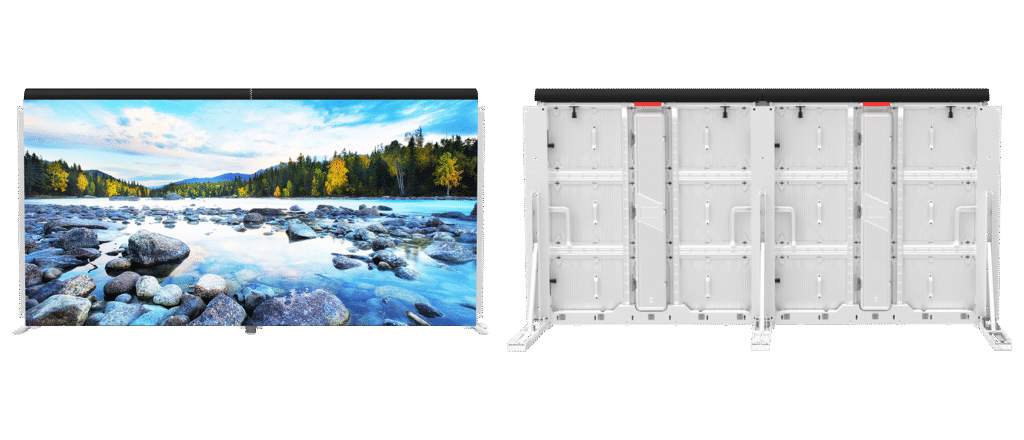

Style Display

Perimeter led screen can be customized with any splicing elongated cabinets

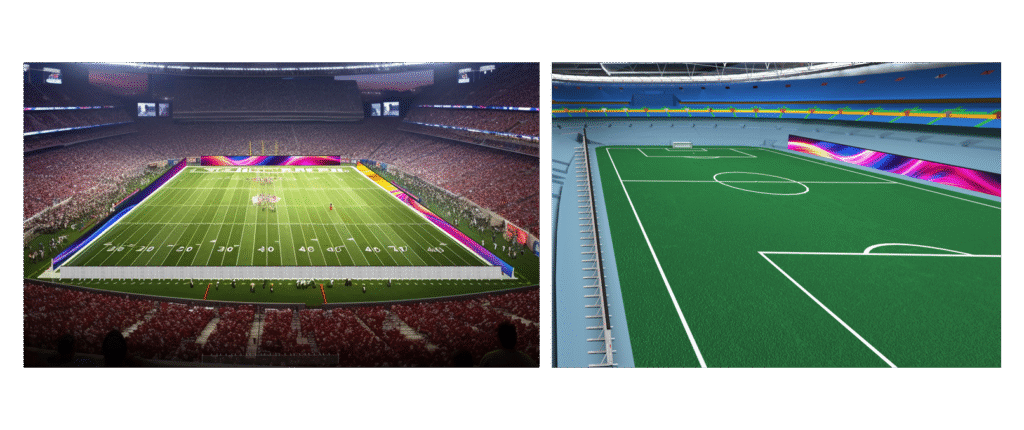

Application scenarios

ootball fields, basketball courts, badminton courts, rugby fields, tennis courts, ice rinks, table tennis courts, curling rinks, baseball、softball fields, etc.

Specification

Item	P4	P5.7	P6.67	P8	P10
Pixel Pitch	4mm	5.7mm	6.67mm	8mm	10mm
LED Type	SMD1921	SMD2727	SMD2727	SMD3535	SMD3535
Module Resolution	120dots × 80dots	84dots × 56dots	72dots x 48dots	60dots x 40dots	48dots x 32dots
Driving Mode	1/10scan	1/7scan	1/6scan	1/5scan	1/2scan
Module Pixels	9600dots	4704dots	3456dots	2,400dots	1536dots
Module Size	480mm x 320mm	480mm x 320mm	480mm x 320mm	480mm x 320mm	480mm x 320mm
Cabinet Size	960mm x 960mm	960mm x 960mm	960mm x 960mm	960mm x 960mm	960mm x 960mm
Cabinet Resolution	240dots x 240dots	168dots x 168dots	144dots x 144dots	120dots x 120dots	96dots x 96dots
Pixel Density	62,500dots/m²	30,671dots/m²	22,477dots/m²	15,625dots/m²	10,000dots/m²
Minimum Viewing Distance	≥4 m	≥5.7 m	≥6.67m	≥8 m	≥10 m
Brightness	5,500nits	5,500nits	5,500nits	5,500nits	6,000nits
IP Grade	IP65	IP65	IP65	IP65	IP65
Refresh Rate	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	13bits～16bits	13bits～16bits	13bits～16bits	13bits～16bits	13bits～16bits
Viewing Angle	H:120° / V:120°	H:120° / V:120°	H:120° / V:120°	H:120° / V:120°	H:120° / V:120°
Maximum Power Consumption	800W/m²	800W/m²	800W/m²	700W/m²	800W/m²
Average Power Consumption				200W/m²	250W/m²
Input Voltage	AC90-240V	AC90-240V	AC90-240V	AC90-240V	AC90-240V
Operating Temperature	﹣30℃～50℃	﹣30℃～50℃	﹣30℃～50℃	﹣30℃～50℃	﹣30℃～50℃
Operating Humidity	10%～90%	10%～90%	10%～90%	10%～90%	10%～90%
Cabinet Material	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Cabinet Weight	26kg	26kg	26kg	26kg	26kg
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI,HDMI1.3,DP1.2, SDI,HDMI2.0,etc.	DVI,HDMI1.3,DP1.2, SDI,HDMI2.0,etc.	DVI,HDMI1.3,DP1.2, SDI,HDMI2.0,etc.	DVI,HDMI1.3,DP1.2, SDI,HDMI2.0,etc.	DVI,HDMI1.3,DP1.2, SDI,HDMI2.0,etc.
