BH Series

The BH SERIES offers superior heat dissipation, anti-interference capabilities, and quick assembly, making it ideal for professional indoor applications.

straight screen, floor tiles, arc can be assembled
500X500 H 1

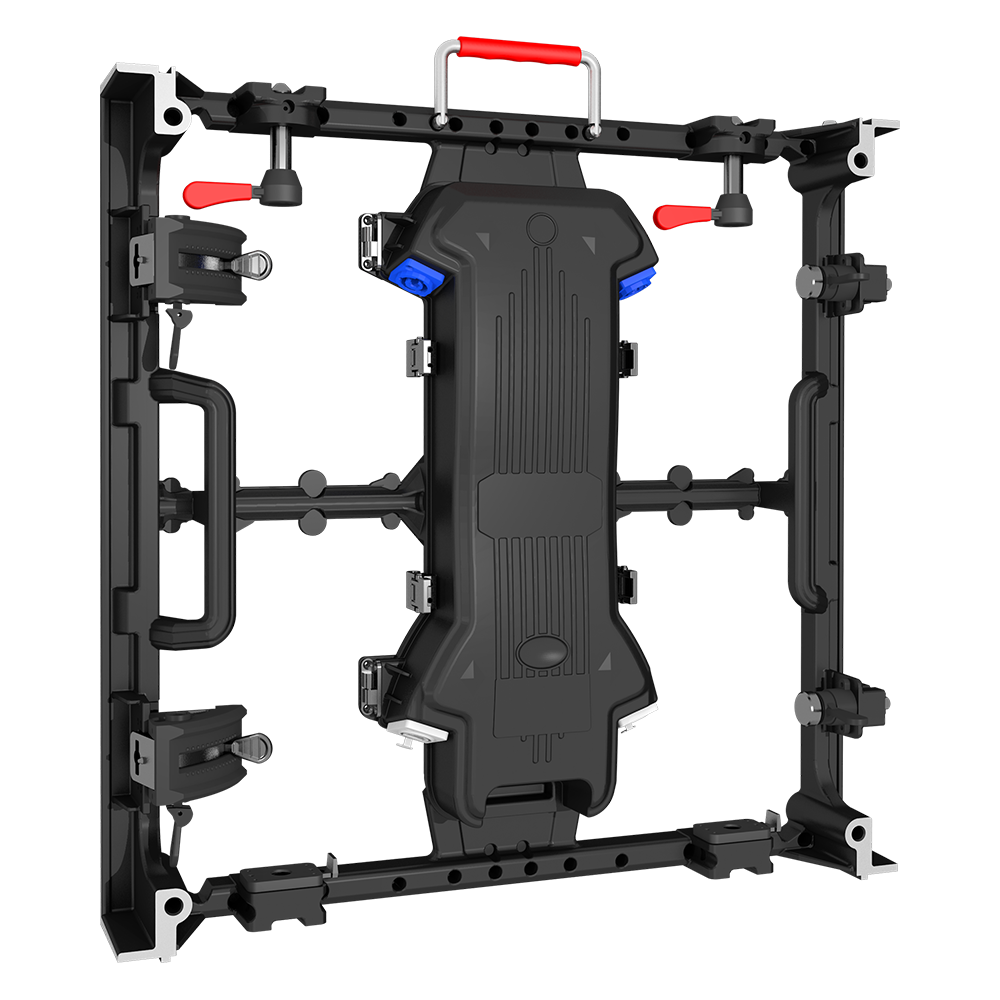

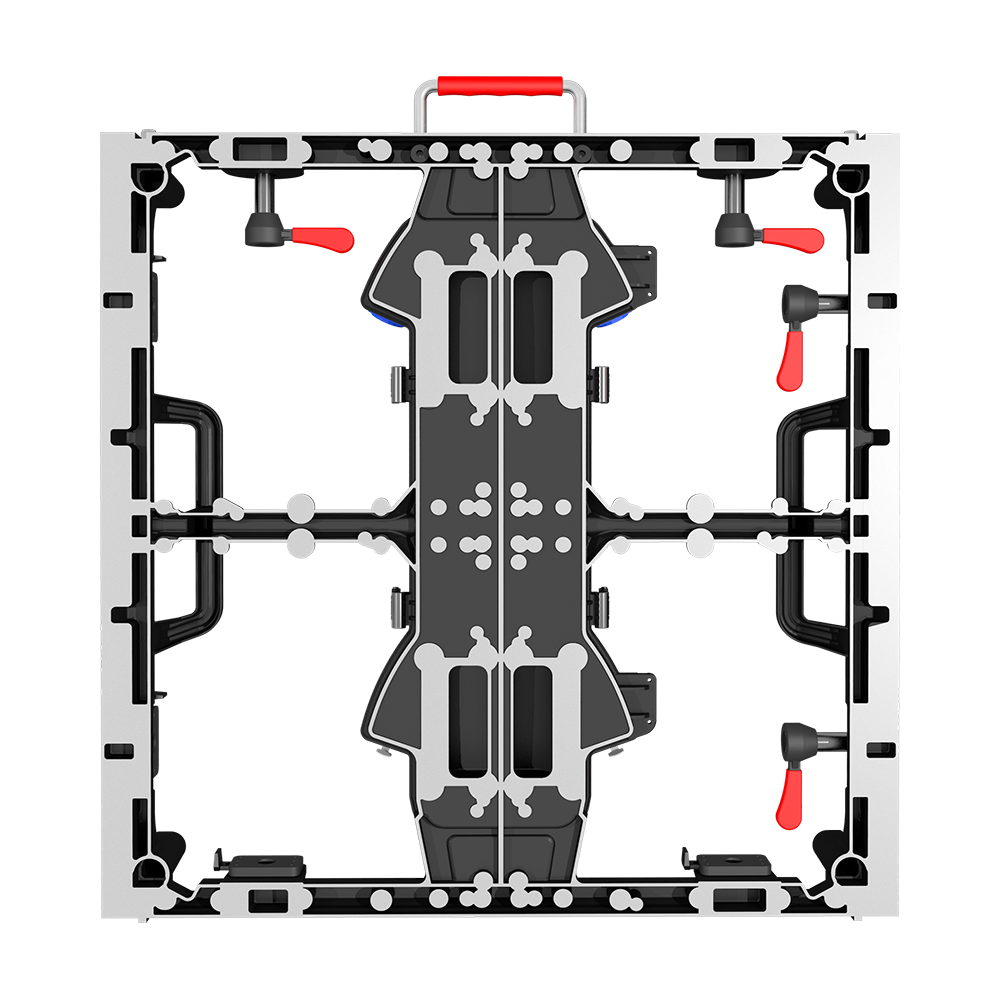

500X500-BH

SizeW500*H500*D70(mm)
Weight4.0kg
ModuleP2.5/P2.604/P2.976/P3.91/P4.46/P4.81/P5.21/P6.25
MaterialAluminum alloy
InstallationLifying,Fixed installation
Use of the environmentindoor/Outdoor
included accessoriesFast lock,handle,system/power installation plate,connecting piece
Cabinet colorBlack,Other color customization
PCB BoardP2.5/P2.604/P2.976/P3.91/P4.46/P4.81/P5.21/P6.25
Suite Size250mm*250mm
Flight Case5PCS cabinet in one case,6PCS cabinet in one case
Hanging beamone beam holds 1/2 PCS cabinet
Power Supply200W-5V 40A,300W-5V 60A
Power Connector20A 3*2.5㎡ National standard

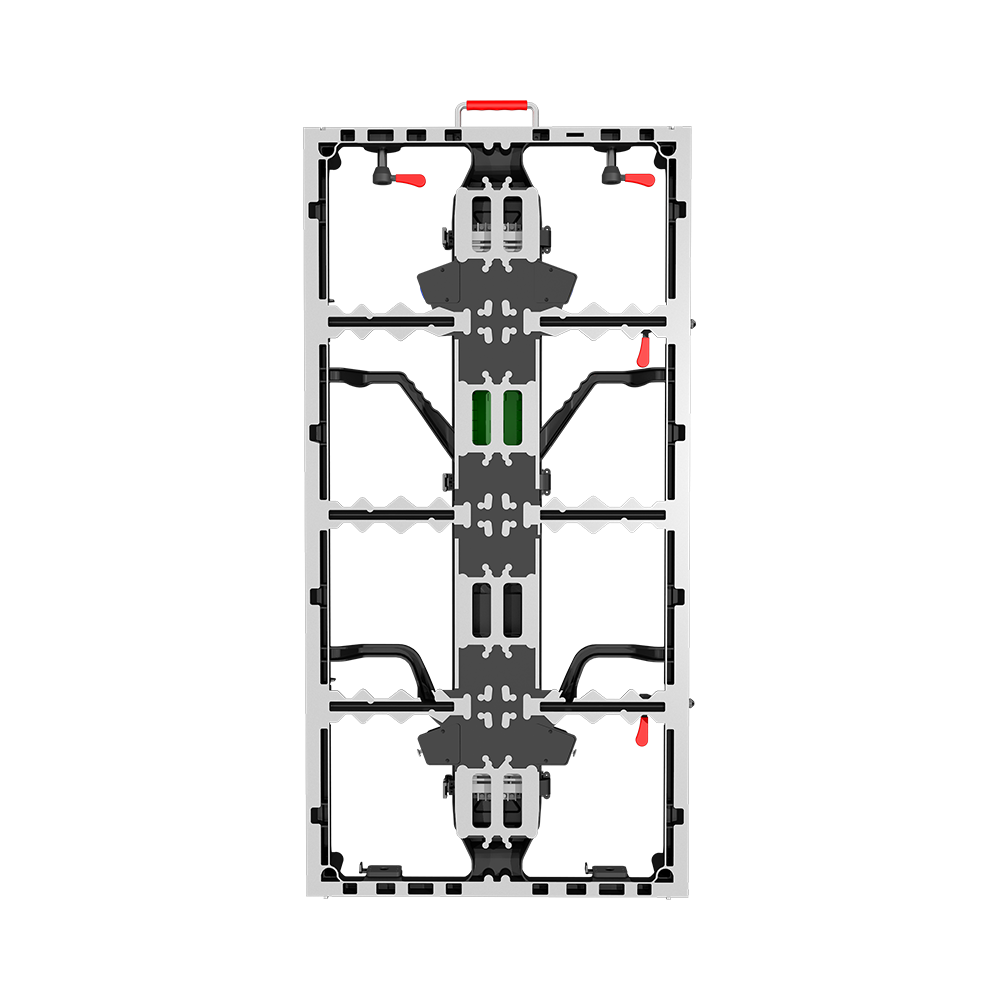

500X1000-BH

SizeW500*H1000*D70(mm)
Weight6.4kg
ModuleP2.5/P2.604/P2.976/P3.91/P4.46/P4.81/P5.21/P6.25
MaterialAluminum alloy
InstallationLifying,Fixed installation
Use of the environmentindoor/Outdoor
included accessoriesFast lock,handle,system/power installation plate,connecting piece
Cabinet colorBlack,Other color customization
PCB BoardP2.5/P2.604/P2.976/P3.91/P4.46/P4.81/P5.21/P6.25
Suite Size250mm*250mm
Flight Case5PCS cabinet in one case,6PCS cabinet in one case
Hanging beamone beam holds 1/2 PCS cabinet
Power Supply200W-5V 40A,300W-5V 60A
Power Connector20A 3*2.5㎡ National standard
