Arena Pro

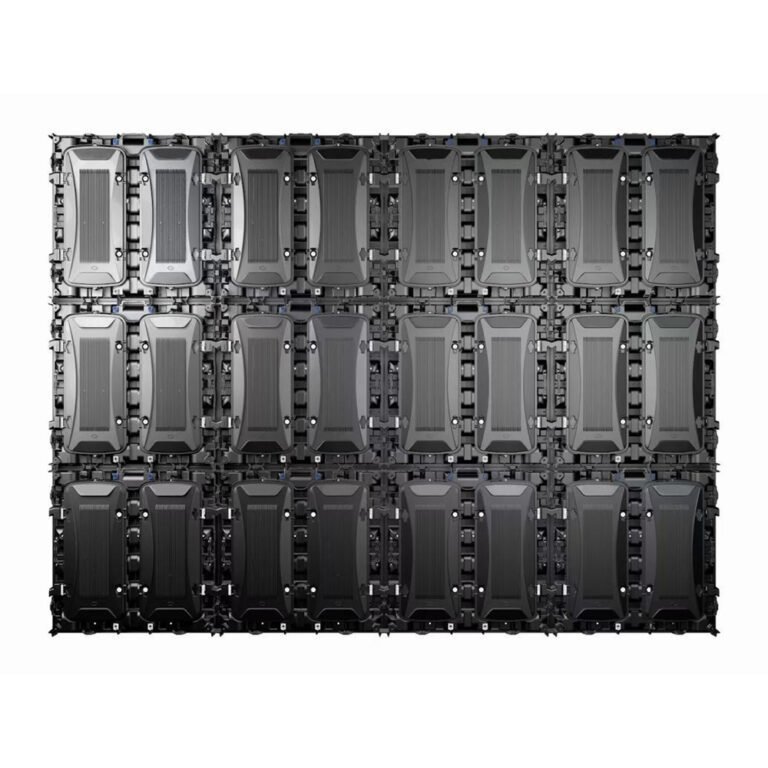

Arena Pro LED screen, combining magnesium/aluminum alloy construction, seamless splicing, and efficient heat dissipation for impressive outdoor displays.
Ultra-Light & Thin Cabinet Design
Magnesium/aluminum alloy die-cast design, 30% thinner and lighter than steel,reducing costs.
High Precision & Seamless Splicing
CNC-machined for high accuracy and smooth panel alignment.
Fanless & Efficient Cooling
No need for fans.Excellent heat dissipation protects LED modules.
Quick Installation & Versatile Use
Installs in 20 seconds. Customizable for indoor/outdoor applications.Mass production with a complete supply chain, cost-Effective.
EMI-Resistant & Cost-Effective
Special electromagnetic interference (EMI) resistance.
High Compatibility
Customizable hole patterns for indoor use.
| Pixel Pitch (mm) | P2 | P2.5 | P3.076 | P4 | P5 | P6.67 | P8 | P10 |
| Pixel structure | SMD1112 | SMD1415 | SMD1921 | SMD1921/2525(Optional) | SMD3535 | |||
| Module resolution(W×H) | 160*80 | 128*64 | 104*52 | 80*40 | 64*32 | 48*24 | 40*20 | 32*16 |
| Cabinet resolution(W×H) | 480*480 | 384*384 | 312*312 | 240*240 | 200*200 | 144*144 | 120*120 | 100*100 |
| Pixel density(dot/m2) | 250000 | 160000 | 105625 | 625000 | 40000 | 22500 | 15625 | 10000 |
| White balance brightness (nit) | ≥5000cd/㎡ | ≥5500cd/㎡ | ≥6000cd/㎡ | ≥5500cd/㎡ | ≥5800cd/㎡ | |||
| Power consumption(W/㎡) | 150-260/600 | 267/800 | 267/800 | 274/820 | 284/850 | 247/740 | 247/740 | 267/770 |
| Scanning method | 1/20 | 1/16 | 1/13 | 1/10 | 1/8 | 1/8 | 1/5 | 1/2 |
| Connection Method | Soft Connections | |||||||
| Module size (mm) | 320*160 | |||||||
| Cabinet size(mm) | 960*960 | |||||||
| Module composition (W×H) | 3*6 | |||||||
| Unit area (m2) | 0.9216 | |||||||
| Weight (kg/Cabinet) | 32.5kg | |||||||
| IP Grade | IP65 front /IP54 back | |||||||
| Material | Die-cast aluminium | |||||||
| Maintenance mode | Rear Maintenance | |||||||
| Colour temperature (K) | 6500-12000K | |||||||
| Horizontal/Vertical Viewing Angle | 160°/140° | |||||||
| Dissociation of uncontrolled points | ≤0.1‰ | |||||||
| Brightness uniformity | ≥97% | |||||||
| Luminance Uniformity | ±0.003 | |||||||
| Power Requirements | AC110/220V | |||||||
| Grey level (bit) | 13-16 | |||||||
| Refresh rate (Hz) | ≥1920/3840 | |||||||
| Control System | Nova/Colorlight | |||||||
| Working environment temperature (℃) | -20℃～50℃ | |||||||
| Working environment humidity (RH) | 10% – 90% | |||||||
| Communication mode | Category 5 cable | |||||||
