AL SERIES LED DISPLAY
Optimize your signage with the advanced AL Series LED display, engineered for reliability and clarity with customizable modules and weatherproof options.
led screen for events or stage usually requires easy install, light weight and reliability. Of course, a reasonable price is required as well in today’s market. Here AL series, which can be used for both indoor and outdoor events.
Pixel Pitch: 2.5mm/ 2.6mm/ 2.97mm/ 3.91mm/ 4.81mm
Cabinet Size:1000mm*500mm or 500mm*500mm
Refresh rate: 1920Hz-3840Hz
Brightness: 1,000nits-4,500nits
Used for: Indoor & Outdoor
P3.91 is a very popular resolution for events stage. Because it can deliver better quality of image and videos. Of course, this series has other options like 2.5mm, 2.6mm, 2.97mm and 4.81mm for different requirement. In addition, these options both has indoor and outdoor version.

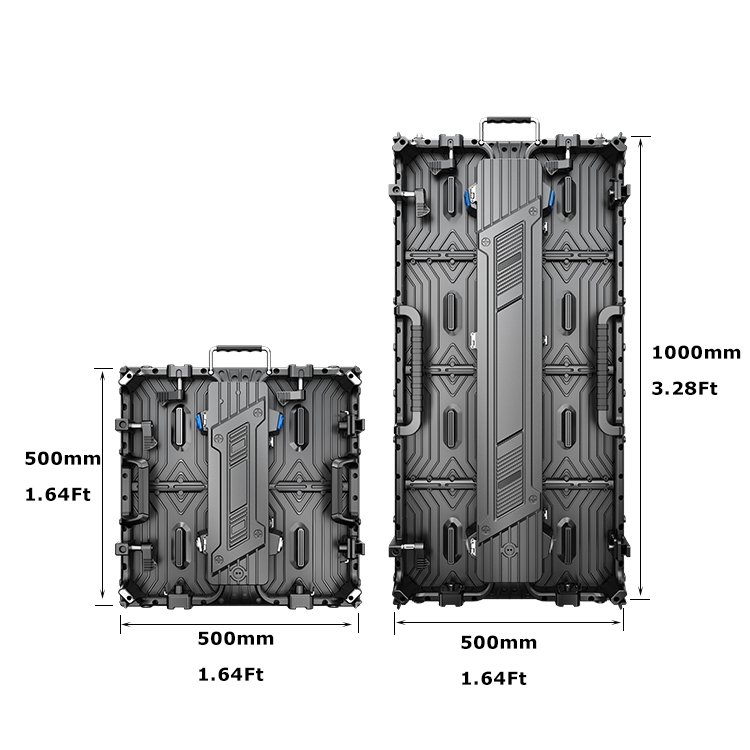

AL series offer two different sizes of cabinet. These two sizes of cabinet are compatible to install together for a stage led screen with height of 1.5meters, 2.5meters or 3.5meters etc.
AL LED WALL
1.Die-casting Aluminum 2.Reliable Connectors 3.Concave & Convex Install

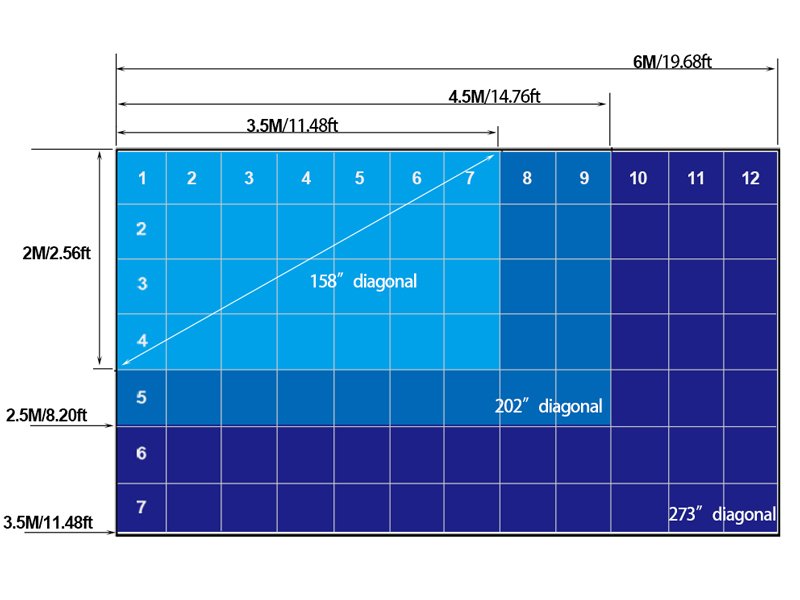

Sizes for Format of 16:9 Ratio

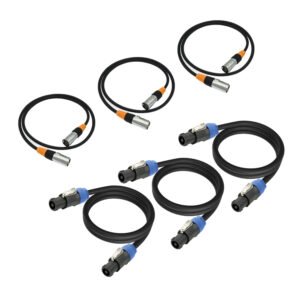

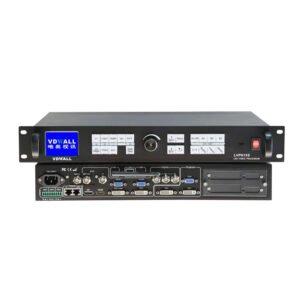

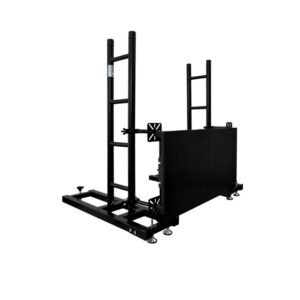

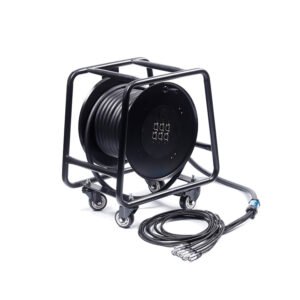

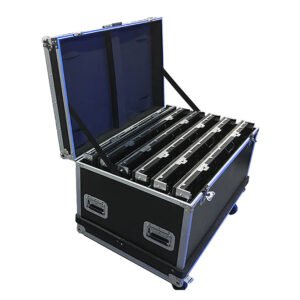

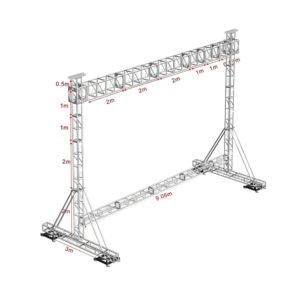

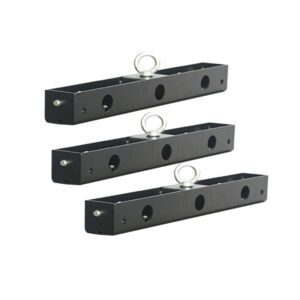

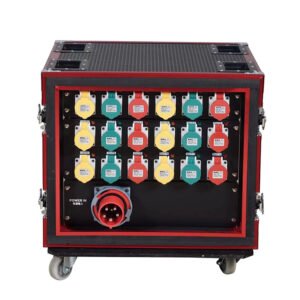

LED Wall Screen Accessories
Models for Indoor Events
| Model | 2.5 indoor | 2.6 Indoor | 2.97 Indoor | 3.91 Indoor | 4.81 Indoor |
| Pixel Pitch | 2.5mm | 2.6mm | 2.97mm | 3.91mm | 4.81mm |
| Color | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm |
| Cabinet Size A | / | / | 1000mm*500mm | 1000mm*500mm | 1000mm*500mm |
| Cabinet Size B | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm |
| Brightness | 1,000nits | 1,000nits | 1,000nits | 1,000nits | 1,000nits |
| Refresh Rate | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz |
| Voltage | AC110V-220V | AC110V-220V | AC110V-220V | AC110V-220V | AC110V-220V |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 14KG/7KG | 14KG/7KG | 14KG/7KG | 14KG/7KG | 14KG/7KG |
Models for Outdoor Events
| Model | 2.6 Outdoor | 2.97 Outdoor | 3.91 Outdoor | 4.81 Outdoor |
| Pixel Pitch | 2.6mm | 2.97mm | 3.91mm | 4.81mm |
| Color | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm |
| Cabinet Size A | / | 1000mm*500mm | 1000mm*500mm | 1000mm*500mm |
| Cabinet Size B | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm |
| Brightness | 4,500nits | 4,500nits | 5,000nits | 5,000nits |
| Refresh Rate | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz |
| Voltage | AC110V-220V | AC110V-220V | AC110V-220V | AC110V-220V |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 14KG/7KG | 14KG/7KG | 14KG/7KG | 14KG/7KG |
