960 SERIES LED DISPLAY
Upgrade your visual experience with the 960 SERIES LED DISPLAY, featuring multiple pixel options, outdoor suitability, and easy installation options.

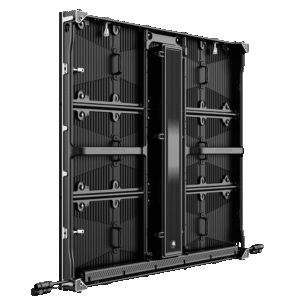

960X960-0utdoor Cabinet
320mmx480mm
P4.44/P5.71/P6.67/P8/P10
960mmx960mmx68mm
7.04KG
White
Hoisting and fixed installation
Six modules per Cabinet
Indoor-lp30/0utdoor- lp65
2Pcs:locating pins.
1PCS:door plank, 4Pcs: quick locks.
1PCS:Flat Plate connector
Specification
| Item | Outdoor | ||||
| Pixel Pitch | 4.44 | 5.7 | 6.67 | 8 | 10 |
| LED lamp | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
|---|---|---|---|---|---|
| Density(dots/m²) | 50625 | 30625 | 22500 | 15625 | 10000 |
| Brightness | ≤5000 nits | 5500-10000 nits | |||
| IP rating | IP65 | ||||
| Cabinet Materiel | Die-casting Aluminum | ||||
| Refresh Rate(Hz) | 3840 / 7680 | ||||
| Scan | 9 scan | 7 scan | 6 scan | 3 scan | 2 scan |
| Module Weight | 0.5 kg | ||||
| Cabinet Weight | 25 kg | ||||
| Module Size(mm) | 480*320*16 | ||||
| Cabinet Size(mm) | 960*960*87 | ||||
| Module Pixel | 108*72 dots | 84*56 dots | 72*48 dots | 60*40 dots | 48*32 dots |
| Cabinet Pixel | 216*216 dots | 168*168 dots | 144*144 dots | 120*120 dots | 96*96 dots |
| Max Power | Common Anode=700 w/sqm | Common Anode=800 w/sqm | |||
| Average Power | Common Anode=235 w/sqm | Common Anode=268 w/sqm | |||
| Max Power | Common Cathode=550 w/sqm | ||||
| Average Power | Common Cathode=185 w/sqm | ||||
| Receiving Card | Novastar A5S Plus / Novatar A10S Pro | ||||
| Maintenance Method | Front & Rear Maintenance | ||||
| Connection | Hardlink | ||||
| Viewing Angle | H140(+70/-70) deg V140(+70/-70) deg | ||||
| Control way | Synchronous/Asynchronous | ||||
| Gray Scale | 16 bit | ||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||||
| Work humidity | 10% ~ 90% | ||||
| Work temperature | ﹣20 ~﹢65℃ | ||||
